LAMP ASSEMBLY - CENTRE HIGH MOUNTED STOP (CHMSL)

Service repair no - 86.41.32

Remove

  1. Apply protective tape to the area around CHMSL.
  2. Open boot lid.

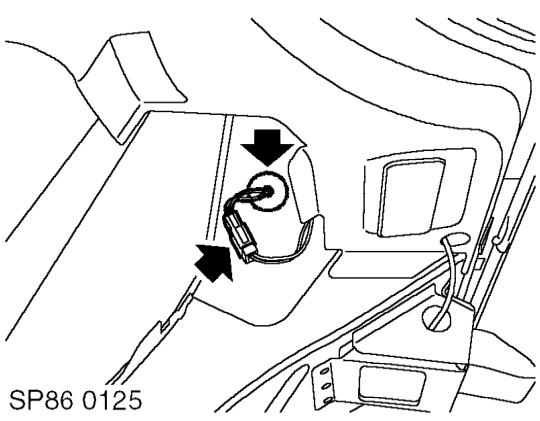

Lamp assembly - centre high mounted stop (chmsl) – Open boot lid.
  1. Disconnect CHMSL multiplug and release harness grommet.

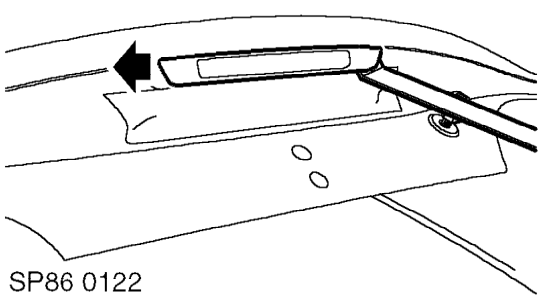

Lamp assembly - centre high mounted stop (chmsl) – Disconnect CHMSL multiplug and release harness grommet.
  1. Using a thin round edged flat blade bent to 20° at the tip, apply pressure to one side of the CHMSL and release from retaining clip.
  2. Slide CHMSL from remaining retaining clip.
  3. Withdraw harness and CHMSL from boot lid.
  4. Remove CHMSL retaining clips from boot lid.

Refit

  1. Fit retaining clips to CHMSL.
  2. Position CHMSL and feed harness through boot lid.
  3. Secure CHMSL retaining clips to boot lid.
  4. Connect CHMSL multiplug and secure harness grommet.
  5. Remove protection from boot lid, clean and inspect paintwork.
