SPEAKER - TWEETER

Service repair no - 86.50.34

Remove

  1. Remove door casing. See BODY, Doors.

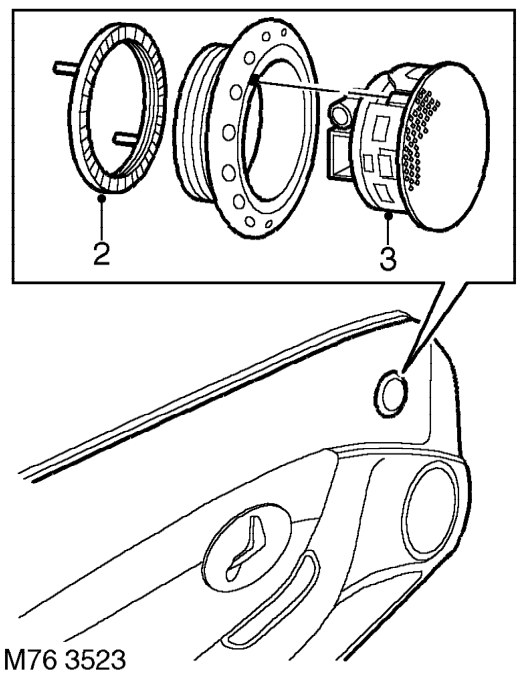

Speaker - tweeter – Remove door casing. See BODY, Doors.
  1. Remove backing nut from tweeter assembly and remove tweeter assembly from door casing.
  2. Release tweeter from finisher.

Refit

  1. Fit tweeter to finisher ensuring correct alignment of key and keyway in finisher.
  2. Fit tweeter assembly to door casing and fit backing nut.
  3. Fit door casing. See BODY, Doors.

SUBWOOFER ASSEMBLY

Service repair no - 86.50.51

Remove

  1. Move both seats fully forwards.

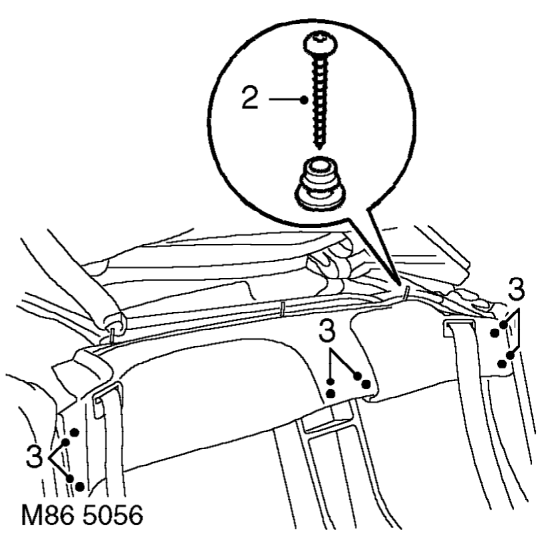

Subwoofer assembly – Move both seats fully forwards.
  1. Remove 3 screws securing finisher and collect press studs.
  2. Release finisher from fixings and slide downwards for access to subwoofer assembly.

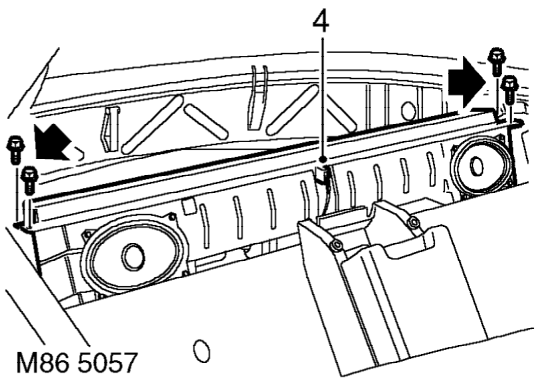

Subwoofer assembly – Release finisher from fixings and slide downwards for access to subwoofer assembly.
  1. Disconnect multiplug from subwoofer.
  2. Remove 4 bolts securing subwoofer to body fixings and remove subwoofer assembly.
