Lamp assembly - fog/driving

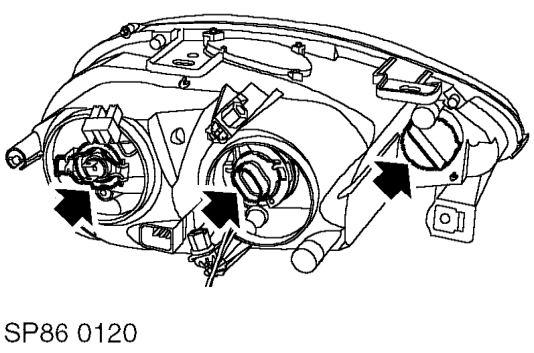

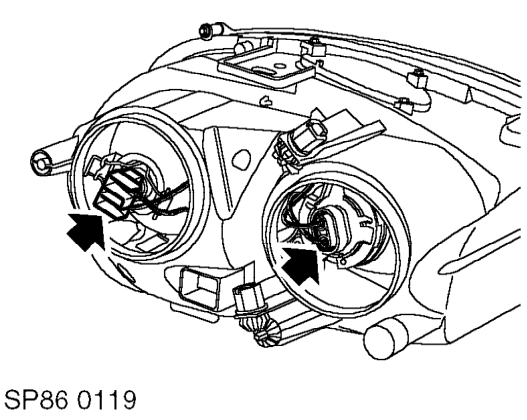

5. Disconnect both headlamp bulb multiplugs.

6. Release bulb holders and remove both headlamp bulbs.
7. Release and remove indicator bulb holder and bulb.

Refit

1. Fit indicator bulb and bulb holder.
2. Fit headlamp bulbs and secure bulb holders.
3. Connect headlamp bulb multiplugs.
4. Fit headlamp bulb covers.
5. Position headlamp assembly to front panel and connect headlamp multiplug.
6. Fit bolts securing headlamp to front panel and tighten to 10 Nm.
7. Fit front bumper valance. See BODY, Exterior fittings.
8. Check/adjust headlamp alignment. See BODY, Adjustments.

LAMP ASSEMBLY - FOG/DRIVING

Service repair no - 86.40.96

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

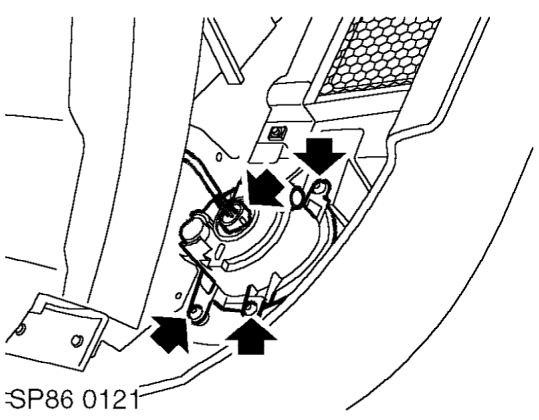

2. Disconnect fog/driving lamp multiplug.
3. Remove 3 screws securing fog/driving lamp to bumper valance.
4. Remove fog/driving lamp from bumper valance.

Refit

1. Position fog/driving lamp to bumper valance, fit and tighten screws.
2. Connect fog/driving lamp multiplug.
3. Remove stands and lower vehicle.
4. Check operation and alignment of fog lamp.
