MG TF Factory Workshop Manual (2002-2005)22 · Electrical
22 · Electrical

Anti-theft alarm ECU

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs › Anti-theft alarm ECU
ElectricalAnti-theft alarm ECU
Diagram

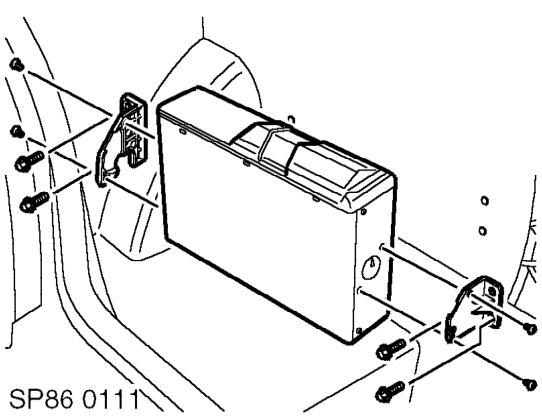

  1. Attach brackets to auto changer with 4 screws and secure to vehicle with 4 bolts. Tighten bolts to 5 Nm.
  2. Connect auto changer multiplug to auto changer.
  3. Lower rear of hood and engage clips to secure rear of hood to body.
  4. Engage hoodwell carpet beneath flip seal.
  5. Position rear window and zip up top edge.
  6. Secure catches to secure front of hood.
  7. Fit head unit. See this section.
  8. Connect battery earth lead.
  9. Raise windows.
  10. Check audio unit including CD auto changer for correct operation and program suitable radio stations on all pre-sets.

ANTI-THEFT ALARM ECU

Service repair no - 86.55.85

Remove

  1. Remove 4 screws securing both closing panels to front console and position panels aside.

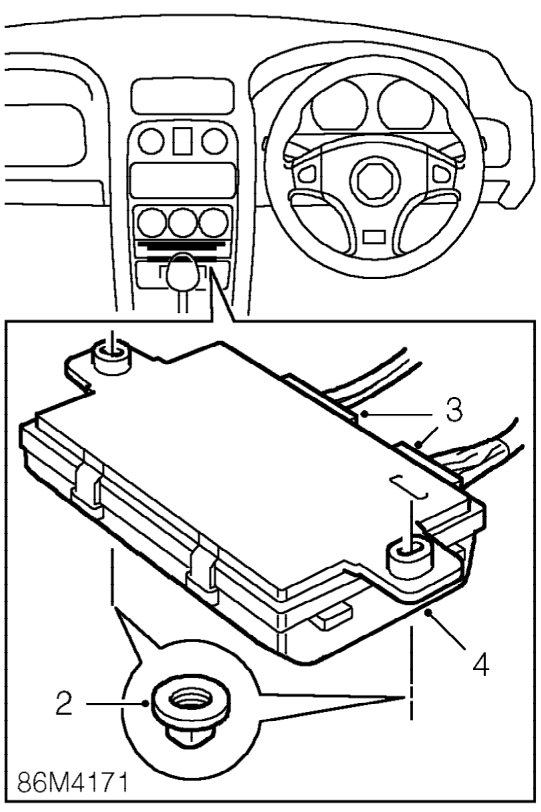

Anti-theft alarm ecu – Remove 4 screws securing both closing panels to front console and position panels aside.
  1. Remove 2 nuts securing alarm ECU to heater control unit.
  2. Disconnect 2 multiplugs from alarm ECU.
  3. Remove alarm ECU.

Refit

  1. Connect multiplugs to alarm ECU.
  2. Position alarm ECU to heater control unit and tighten nuts to 4 Nm.
  3. Fit closing panels and secure with screws.
