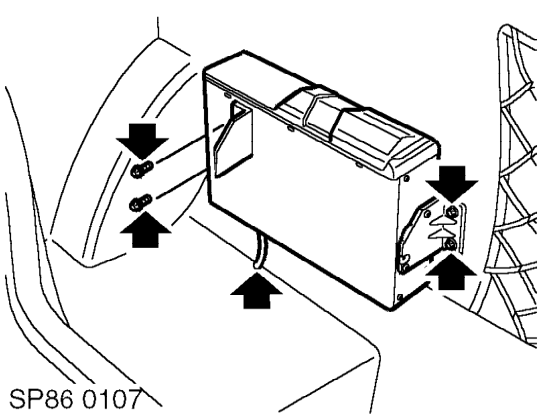

14. Disconnect auto changer data cable from auto changer, remove 4 bolts securing auto changer brackets to vehicle and remove auto changer.

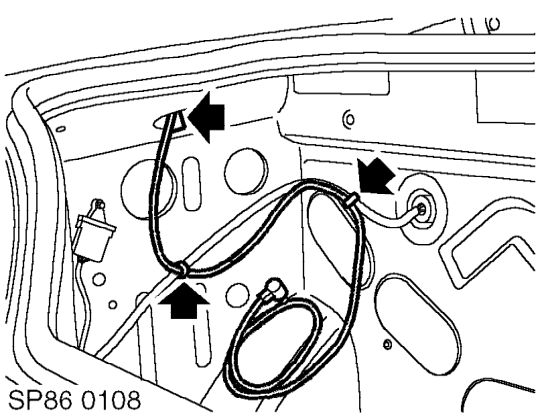

15. Remove luggage compartment trim. See BODY, Interior trim components.

16. Remove cable ties securing auto changer data cable to harness.

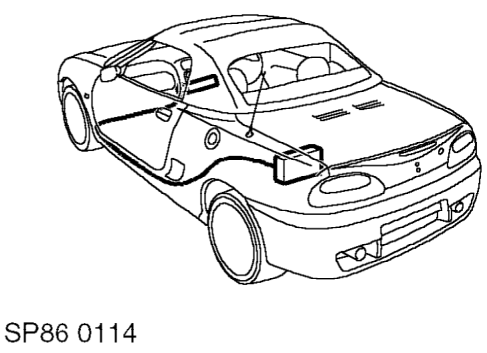

17. Remove auto changer data cable.

Refit

1. Route auto changer cable behind console closing panel and into audio unit aperture.
2. Route auto changer data cable under sound deadening and carpet in LH footwell and along harness. Secure with cable ties.
3. Route auto changer data cable under roof hinge and into hood compartment. Secure with cable ties.
4. Replace sound deadening and secure carpet with trim clips.
5. Position centre console closing panel, connect Lucar connectors and secure closing panel with screws.
6. Fit lower section of LH door seal to secure carpet.
7. Fit new grommet to auto changer data cable. Feed data cable through aperture and fit new grommet to body.
8. Feed auto changer data cable along cavity and into luggage compartment. Secure with supplied cable tie clip and attach to body to prevent damage to cable.
9. Secure auto changer data cable to harness with cable ties and feed through luggage compartment trim.
10. Position luggage compartment trim.
11. Feed auto changer data cable through slit in luggage compartment trim.
12. Refit luggage compartment trim. See BODY, Interior trim components.
