STARTER SOLENOID

Service repair no - 86.60.08

Remove

  1. Disconnect battery earth lead.
  2. Remove starter motor. See this section.

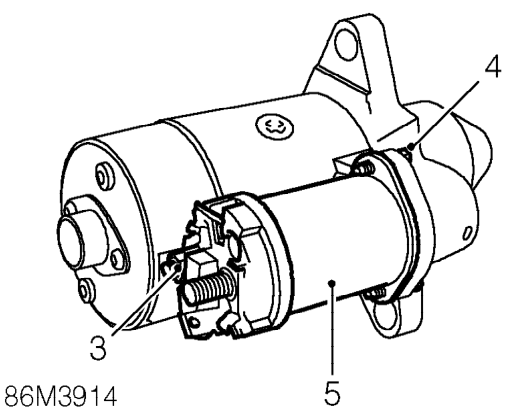

Starter solenoid – Remove starter motor. See this section.
  1. Remove nut from solenoid and disconnect lead.
  2. Remove 2 bolts securing solenoid to starter motor housing.
  3. Remove solenoid from starter motor housing.
  4. Remove plunger from starter.

Refit

  1. Apply grease to lever end of plunger.
  2. Fit starter solenoid to starter motor housing and tighten bolts.
  3. Fit lead to rear of solenoid and tighten nut.
  4. Fit starter motor. See this section.
  5. Connect battery earth lead.

PANEL DIMMER RESISTOR

Service repair no - 86.65.37

Remove

Panel dimmer resistor – Service repair no - 86.65.37
  1. Release 2 clips and open fuse box cover.
