CAMSHAFT REAR OIL SEAL - INLET

Service repair no - 12.13.10

Remove

  1. Disconnect battery earth lead.
  2. Remove engine cover. See this section.

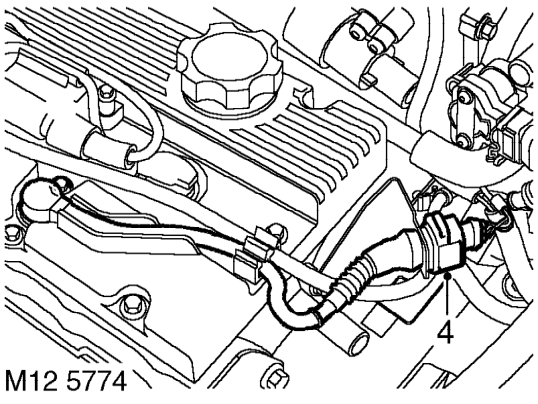

  3. Position absorbent cloth beneath vehicle to catch any oil spillage.
Camshaft rear oil seal - inlet – Position absorbent cloth beneath vehicle to catch any oil spillage.

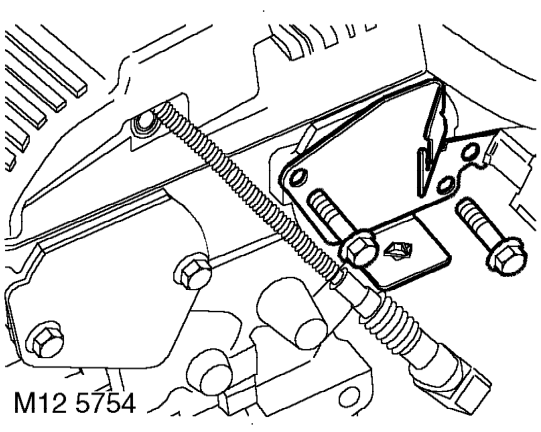

  1. Disconnect CMP sensor multiplug and release CMP harness from oil seal cover.
Camshaft rear oil seal - inlet – Disconnect CMP sensor multiplug and release CMP harness from oil seal cover.
  1. Remove 2 bolts securing oil seal cover to cylinder head and position cover aside.
Camshaft rear oil seal - inlet – Remove 2 bolts securing oil seal cover to cylinder head and position cover aside.

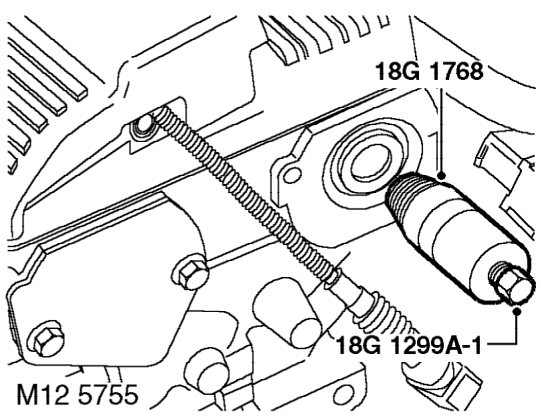

  1. Remove camshaft oil seal using 18G 1768 and centre bolt 18G 1299A-1.
  2. Discard camshaft oil seal.
