MG TF Factory Workshop Manual (2002-2005)05 · Engine (K Series)
05 · Engine

Pulley - crankshaft - Stepspeed (Em-CVT) models

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs › Pulley - crankshaft - Stepspeed (Em-CVT) models
Engine (K Series)Pulley - crankshaft - Stepspeed (Em-CVT) models

Refit

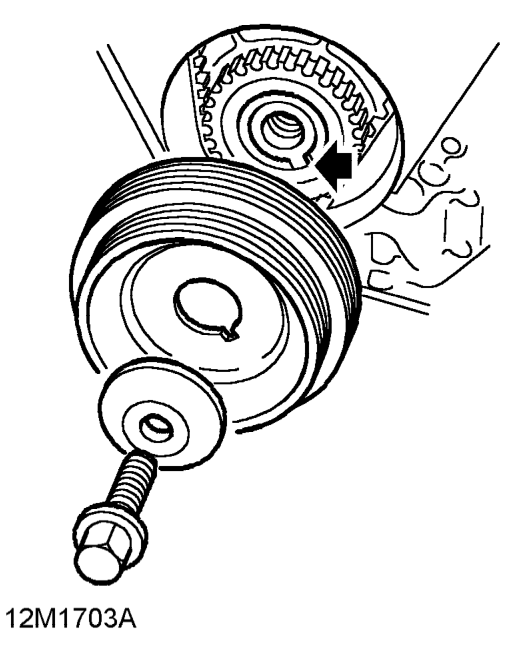

  1. Clean crankshaft to pulley mating faces.
Clean crankshaft to pulley mating faces.
  1. Fit crankshaft pulley to crankshaft, ensuring that indent on pulley locates over lug on gear.
  2. Fit washer and bolt securing crankshaft pulley to crankshaft and tighten to 205 Nm.
  3. Remove crankshaft locking tool 18G 1742 .
  4. Fit starter motor. See ELECTRICAL, Repairs.
  5. Fit auxiliary drive belt. See ELECTRICAL, Repairs.
  6. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
  7. Remove stands and lower vehicle.
  8. Connect battery earth lead.

PULLEY - CRANKSHAFT - STEPSPEED (Em-CVT) MODELS

Service repair no - 12.21.01

Remove

  1. Disconnect battery earth lead.
  2. Raise rear of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Remove road wheel.
  2. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
  3. Remove starter motor. See ELECTRICAL, Repairs.

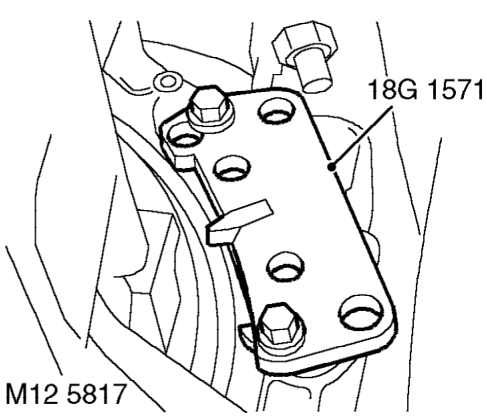

Pulley - crankshaft - stepspeed (em-cvt) models – Remove starter motor. See ELECTRICAL, Repairs.
  1. Lock crankshaft using tool 18G 1571 .

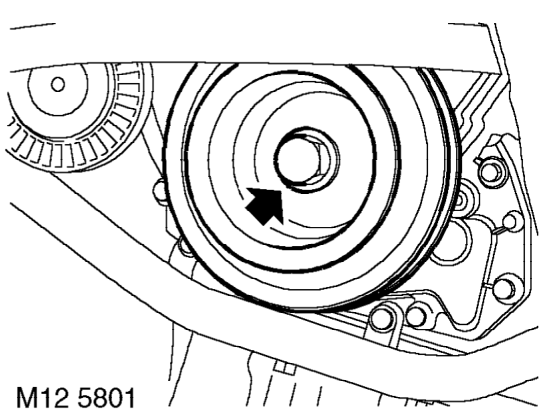

Pulley - crankshaft - stepspeed (em-cvt) models – Lock crankshaft using tool 18G 1571 .
  1. Remove bolt securing crankshaft pulley and collect washer.
  2. Remove crankshaft pulley.

Parts & tools for this job For 2002 MG TF
