Engine (K Series)Oil pressure relief valve

OIL PRESSURE RELIEF VALVE

Service repair no - 12.60.56

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Oil pressure relief valve – Remove road wheel(s).

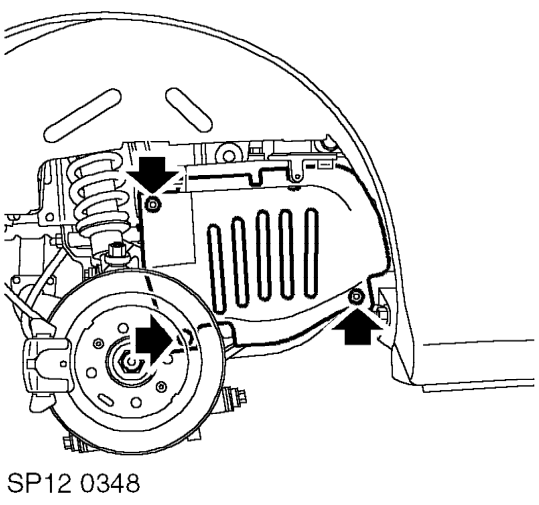

  1. Remove fixings securing closing panel and remove panel.
Oil pressure relief valve – Remove fixings securing closing panel and remove panel.

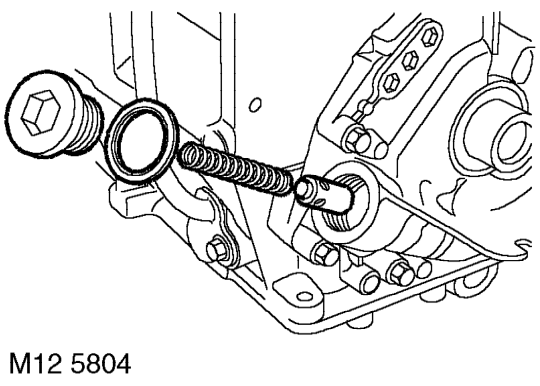

  1. Remove relief valve sealing plug and sealing washer.
  2. Remove spring and relief valve.

Refit

  1. Clean oil pump housing.
  2. Clean valve spring, valve and sealing washer.
  3. Lubricate relief valve. Fit valve and spring.
  4. Fit new sealing washer, fit and tighten sealing plug to 25 Nm.
  5. Fit closing panel and secure with fixings.
  6. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
  7. Remove stand(s) and lower vehicle.
  8. Check and top up oil level. See MAINTENANCE.
