MG TF Factory Workshop Manual (2002-2005)05 · Engine (K Series)
05 · Engine

Crankshaft front oil seal

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs › Crankshaft front oil seal
Engine (K Series)Crankshaft front oil seal

Refit

  1. Clean crankshaft to pulley mating faces.

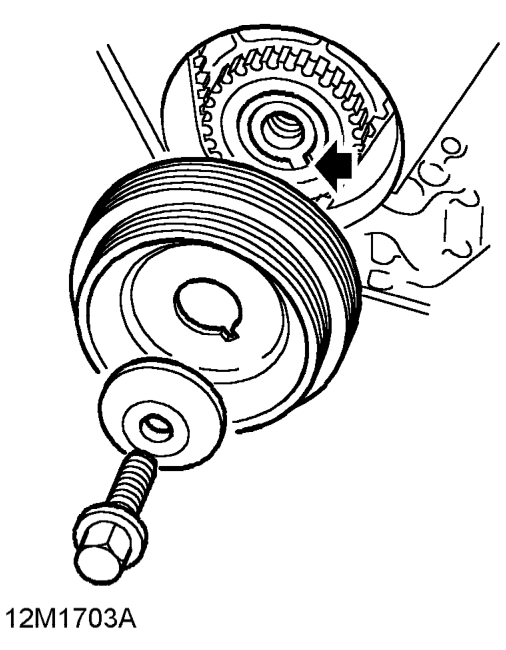

Clean crankshaft to pulley mating faces.
  1. Fit crankshaft pulley to crankshaft, ensuring that indent on pulley locates over lug on gear.
  2. Fit washer and bolt securing crankshaft pulley to crankshaft and tighten to 205 Nm.
  3. Remove crankshaft locking tool 18G 1742.
  4. Fit starter motor. See ELECTRICAL, Repairs.
  5. Fit auxiliary drive belt. See ELECTRICAL, Repairs.
  6. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
  7. Remove stands and lower vehicle.
  8. Connect battery earth lead.

CRANKSHAFT FRONT OIL SEAL

Service repair no - 12.21.14

Remove

  1. Remove crankshaft timing belt gear. See this section.

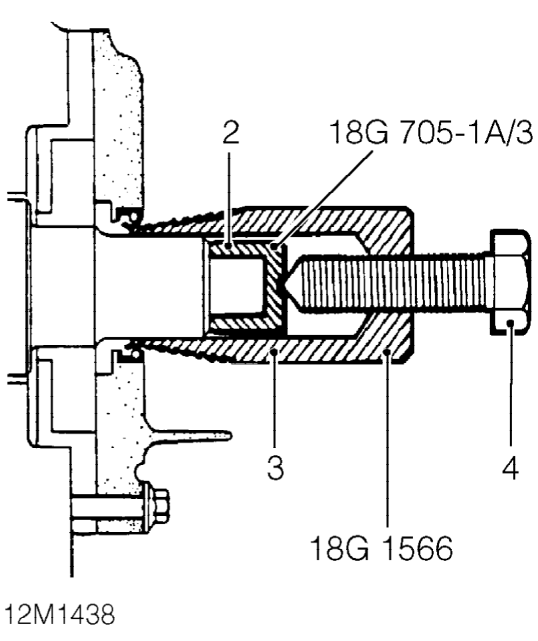

Crankshaft front oil seal – Remove crankshaft timing belt gear. See this section.
  1. Fit thrust button tool 18G 705-1A/3 to crankshaft.
  2. Ensure bore of tool is burr free, fit and tighten tool 18G 1566. into crankshaft front oil seal.
  3. Tighten centre screw of tool to remove oil seal.
  4. Remove thrust button from crankshaft.
