GASKET - CYLINDER HEAD - Em-CVT MODELS

Service repair no - 12.29.02

Remove

  1. Drain cooling system. See COOLING SYSTEM, Adjustments.
  2. Remove camshaft timing belt. See this section.
  3. Remove inlet manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

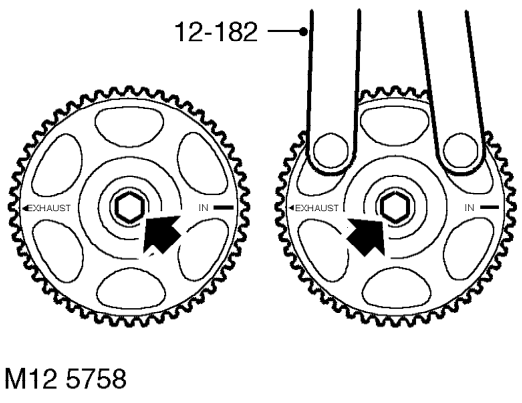

Gasket - cylinder head - em-cvt models – Remove inlet manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  1. Using 12-182 to restrain camshaft gears, remove bolts securing camshaft gears and collect washers.

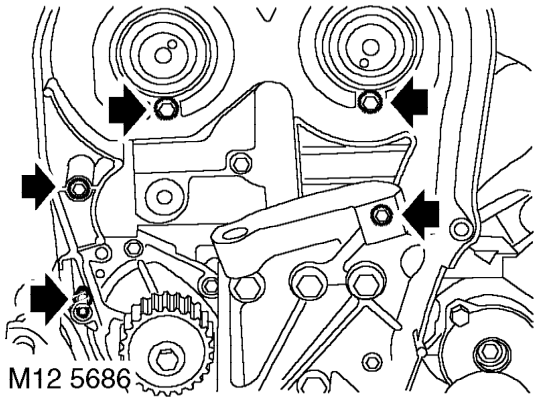

  2. Remove camshaft gears.
Gasket - cylinder head - em-cvt models – Remove camshaft gears.
  1. Remove 5 bolts from timing belt rear cover.
  2. Remove rear cover.

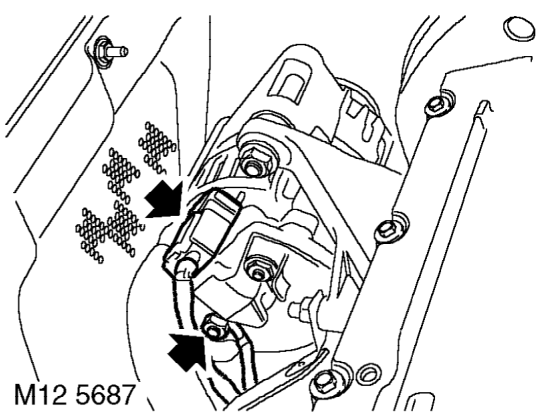

  3. Remove camshaft cover gasket. See this section.
Gasket - cylinder head - em-cvt models – Remove camshaft cover gasket. See this section.

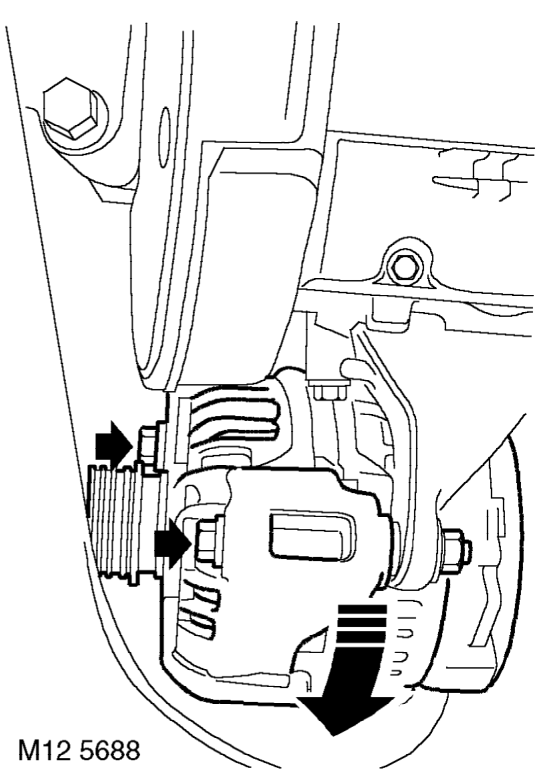

  1. Remove nut securing alternator lead and release lead, disconnect alternator multiplug.
Gasket - cylinder head - em-cvt models – Remove nut securing alternator lead and release lead, disconnect alternator multiplug.
  1. Remove alternator top bolt and loosen lower bolt.
  2. Position alternator forwards to access alternator bracket.
