MG TF Factory Workshop Manual (2002-2005)05 · Engine (K Series)
05 · Engine

Gasket - cylinder head - Em-CVT models (page 2 of 3)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Engine (K Series)Gasket - cylinder head - Em-CVT models · page 2 of 3
Diagram

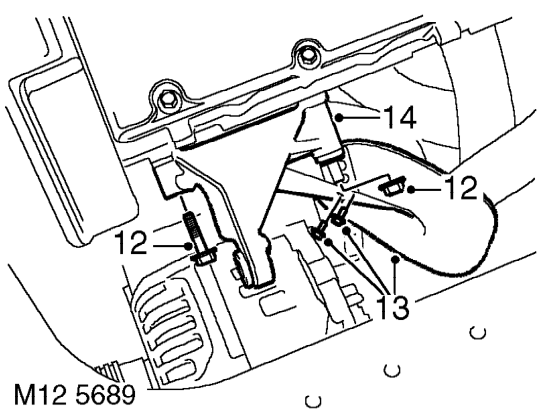

  1. Remove nut and bolt securing alternator bracket.
  2. Remove 2 bolts securing exhaust heat shield and remove heat shield.
  3. Collect alternator bracket.
Collect alternator bracket.

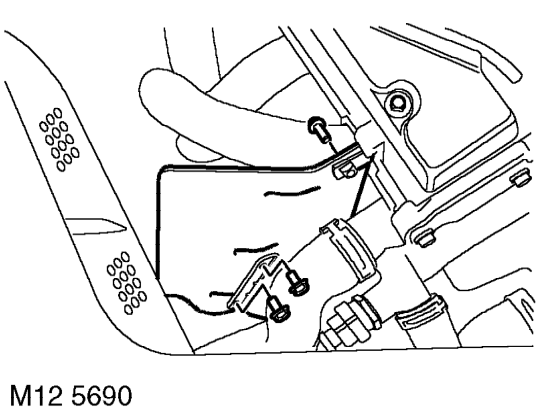

  1. Remove 3 bolts securing coolant hose heat shield and remove heat shield.
Remove 3 bolts securing coolant hose heat shield and remove heat shield.

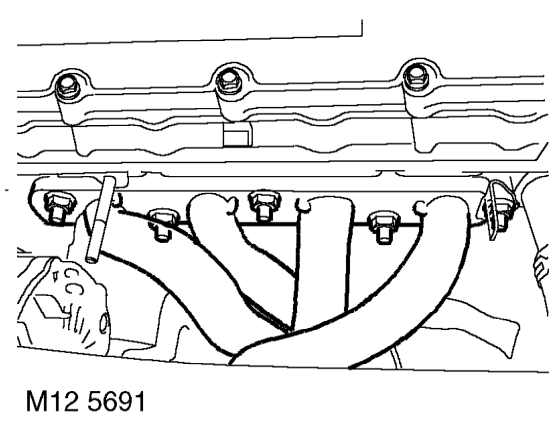

  1. Remove 5 flange nuts securing exhaust manifold to cylinder head.
  2. Release exhaust manifold from cylinder head. Position manifold aside, remove and discard gasket.
Release exhaust manifold from cylinder head. Position manifold aside, remove and discard g

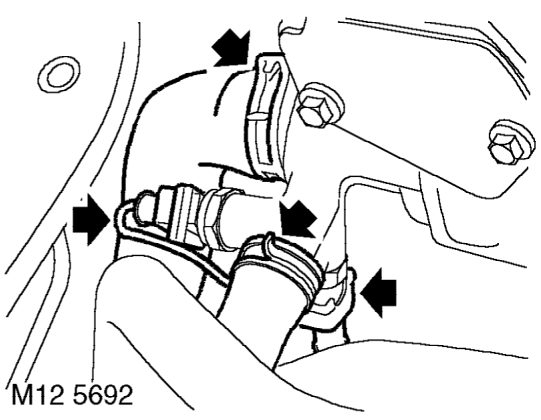

  1. Loosen clips and disconnect 2 coolant hoses from cylinder head.
  2. Disconnect 2 multiplugs from coolant sensors.
Disconnect 2 multiplugs from coolant sensors.

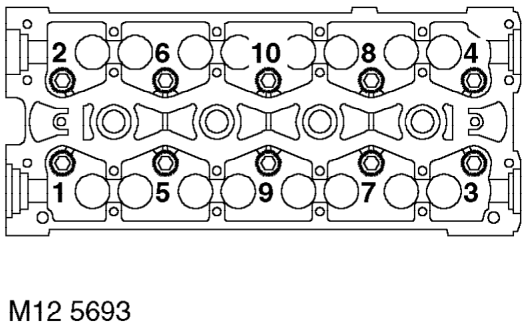

  1. Loosen 10 x E12 cylinder head to oil rail bolts in sequence shown. Remove bolts and store in fitted order.
  2. Remove cylinder head assembly from cylinder block, use assistance.
Remove cylinder head assembly from cylinder block, use assistance.

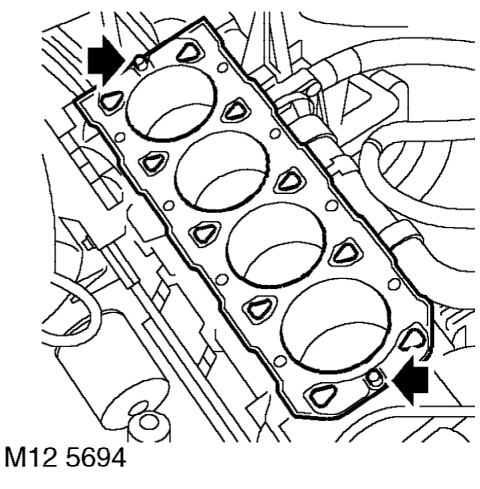

  1. Remove cylinder head gasket from cylinder block and discard.

CAUTION: Do not rotate crankshaft with cylinder head removed.
