Mounting bracket - LH - Stepspeed (Em-CVT) models

9. Remove 2 bolts securing mounting to gearbox bracket and remove mounting.

Refit

1. Position mounting to gearbox bracket, fit and tighten bolts to 45 Nm.
2. Lower and remove jack from under gearbox.
3. Fit distance piece into centre of mounting.
4. Align mounting to LH buttress, position centre bolt, fit nut, tighten nut and bolt to 82 Nm.
5. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
6. Remove stand(s) and lower vehicle.
7. Fit air cleaner assembly. See this section.
8. Connect battery earth lead.

MOUNTING BRACKET - LH - STEPSPEED (Em-CVT) MODELS

Service repair no - 12.45.11

Remove

1. Disconnect battery earth lead.
2. Remove air cleaner assembly. See this section.
3. Raise rear of vehicle and support on stand(s).

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

4. Remove LH rear road wheel.

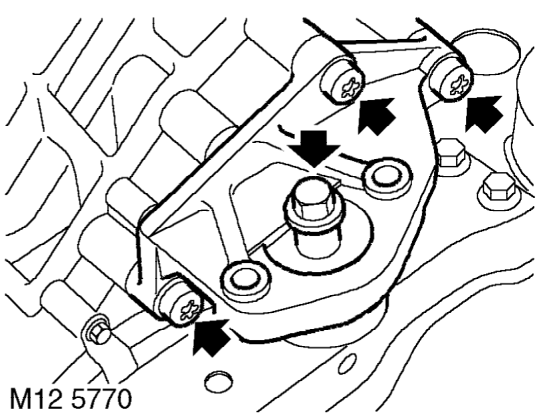

5. Fit wooden block to jack and position jack to support gearbox.

6. Remove centre nut and bolt securing mounting to LH buttress.
7. Remove distance piece from centre of mounting.

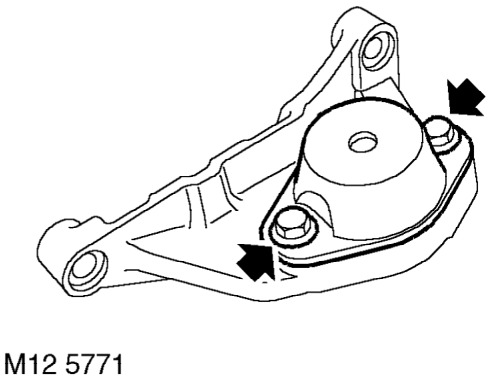

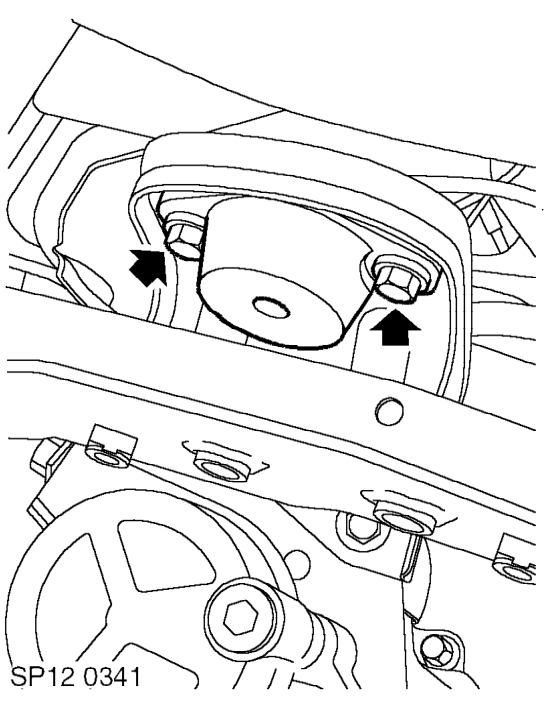

8. Raise jack sufficiently to gain access to bolts securing mounting to gearbox bracket.

9. Remove 2 bolts securing mounting to gearbox bracket and remove mounting.
