Mounting bracket - RH - all models

Refit

1. Position mounting to gearbox bracket, fit and tighten bolts to 45 Nm.
2. Lower and remove jack from under gearbox.
3. Fit distance piece into centre of mounting.
4. Align mounting to LH buttress, position centre bolt, fit nut, tighten nut and bolt to 82 Nm.
5. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
6. Remove stand(s) and lower vehicle.
7. Fit air cleaner assembly. See this section.
8. Connect battery earth lead.

MOUNTING BRACKET - RH - ALL MODELS

Service repair no - 12.45.12

Remove

1. Disconnect battery earth lead.
2. Remove engine compartment access grille. See BODY, Exterior fittings.
3. Remove engine compartment access cover. See this section.
4. Raise rear of vehicle and support on stand(s).

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

5. Remove RH rear road wheel.

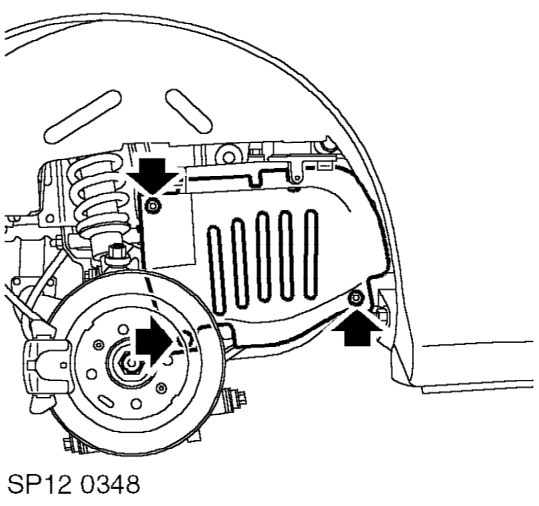

6. Remove fixings securing closing panel and remove panel.
7. Remove trailing arm. See REAR SUSPENSION, Repairs.
8. Fit wooden block to jack and position jack to support engine.
