Cover - timing belt lower front

Make

MG

Model

TF Factory Workshop Manual

Year

2002–2005

Section

Repairs › Cover - timing belt lower front

Engine (K Series)Cover - timing belt lower front

COVER - TIMING BELT LOWER FRONT

Service repair no - 12.65.43

Remove

1. Disconnect battery earth lead.
2. Remove timing belt upper front cover. See this section.
3. Remove crankshaft pulley. See this section.

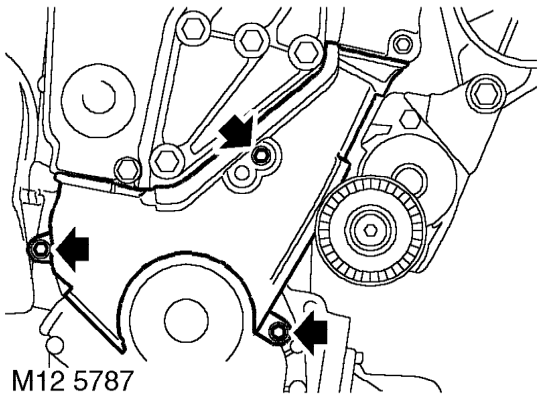

4. Remove 3 bolts securing lower front cover.
5. Remove lower cover.

Refit

1. Fit lower cover and tighten bolts to 9 Nm.
2. Fit crankshaft pulley. See this section.
3. Fit timing belt upper front cover. See this section.
4. Connect battery earth lead.

05 Engine
