Engine (K Series)Pulley - crankshaft - VVC models

Refit

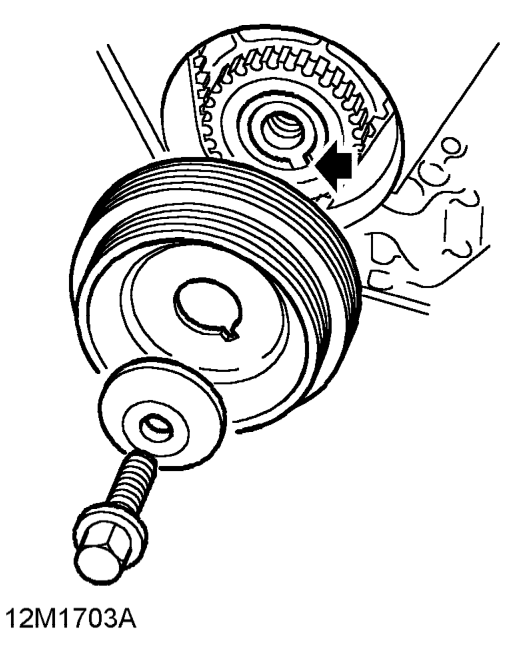

  1. Clean crankshaft to pulley mating faces.
Clean crankshaft to pulley mating faces.
  1. Fit crankshaft pulley to crankshaft, ensuring that indent on pulley locates over lug on gear.
  2. Fit washer and bolt securing crankshaft pulley to crankshaft and tighten to 205 Nm.
  3. Remove flywheel locking tool 18G 1571 .
  4. Fit starter motor. See ELECTRICAL, Repairs.
  5. Fit auxiliary drive belt. See ELECTRICAL, Repairs.
  6. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
  7. Remove stands and lower vehicle.
  8. Connect battery earth lead.

PULLEY - CRANKSHAFT - VVC MODELS

Service repair no - 12.21.01

Remove

  1. Disconnect battery earth lead.
  2. Raise rear of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Remove road wheel.
  2. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
  3. Remove starter motor. See ELECTRICAL, Repairs.

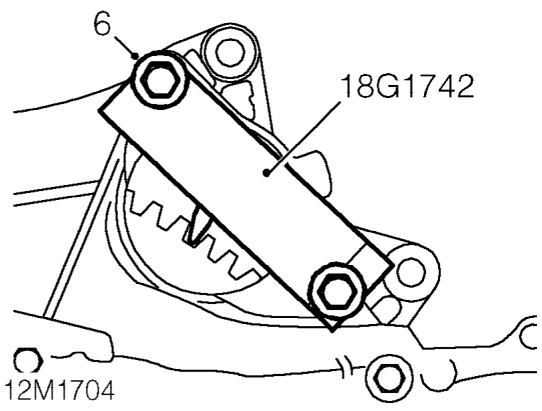

Pulley - crankshaft - vvc models – Remove starter motor. See ELECTRICAL, Repairs.
  1. Lock crankshaft using tool 1742 .

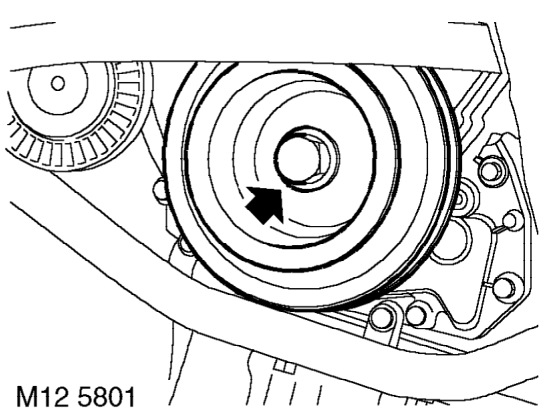

Pulley - crankshaft - vvc models – Lock crankshaft using tool 1742 .
  1. Remove bolt securing crankshaft pulley and collect washer.
  2. Remove crankshaft pulley.
