Switch - oil pressure

5. Position sump to alignment pins, fit 2 bolts at positions 5 and 6, tighten bolts to 4 Nm.
6. Fit 10 bolts into remaining holes ensuring that 2 longest bolts are in original fitted positions, finger tighten bolts.
7. Remove alignment pins 18G 1744, fit and finger tighten remaining 2 bolts.

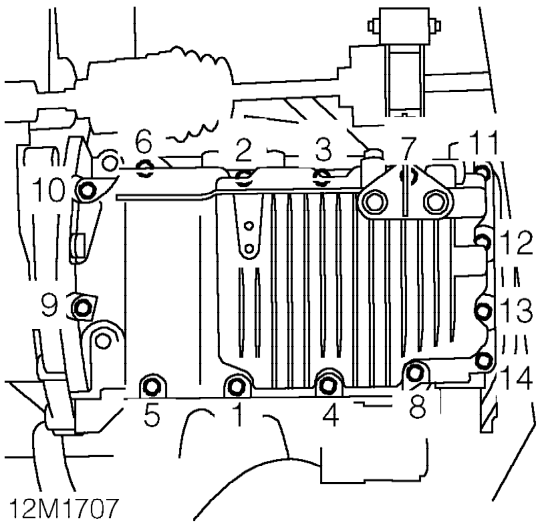

8. Progressively tighten sump bolts in sequence shown to 25 Nm. Tighten sump to gearbox bolts to 45 Nm.
9. Position engine rear mount to subframe, fit bolt and tighten to 85 Nm.
10. Tighten engine rear mount to oil sump bolt to 85 Nm.
11. Fit exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
12. Fill engine with oil. See MAINTENANCE.

SWITCH - OIL PRESSURE

Service repair no - 12.60.50

Remove

1. Disconnect battery earth lead.
2. Raise rear of vehicle.

WARNING: Support on safety stands.

3. Position container below engine oil filter to collect spillage.

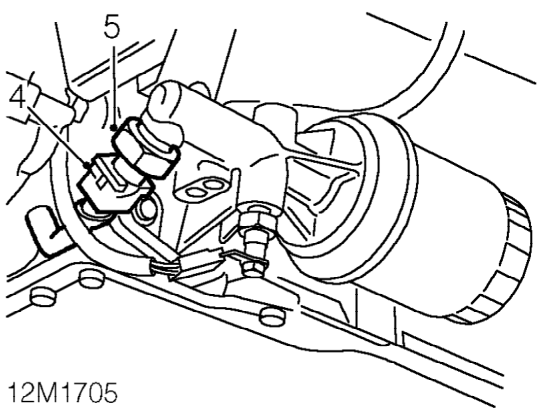

4. Disconnect multiplug from oil pressure switch.
5. Remove oil pressure switch.

Refit

1. Clean oil pressure switch threads.
2. Fit oil pressure switch and tighten to 12 Nm.
3. Connect multiplug to oil pressure switch.
4. Remove stand(s) and lower vehicle.
5. Top-up engine oil. See MAINTENANCE.
6. Connect battery earth lead.
