Rover 100 Repair Manual Supplement (1996-1998)04 · Engine
04 · Engine

Engine and gearbox assembly (page 2 of 9)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
EngineEngine and gearbox assembly · page 2 of 9
Diagram

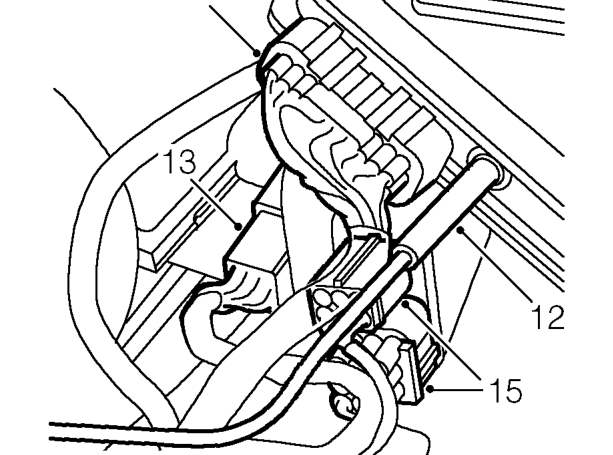

  1. Disconnect multiplug from ECM.
  2. Disconnect vacuum hose from ECM.
  3. Release main harness multiplug from bracket.
  4. Disconnect multiplug.

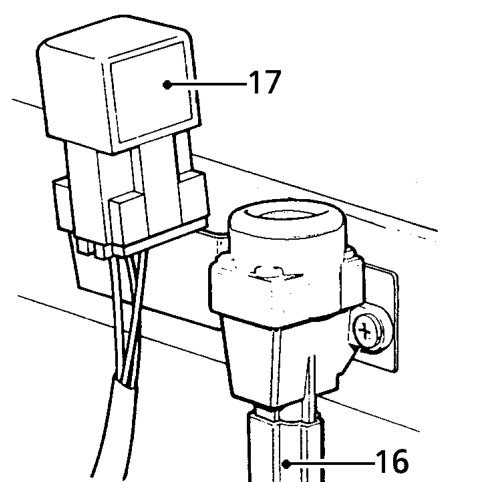

  5. Disconnect 2 multiplugs from relay module.
Disconnect 2 multiplugs from relay module.
  1. Disconnect multiplug from inertia switch.
  2. Release oxygen sensor relay from bracket.
Release oxygen sensor relay from bracket.

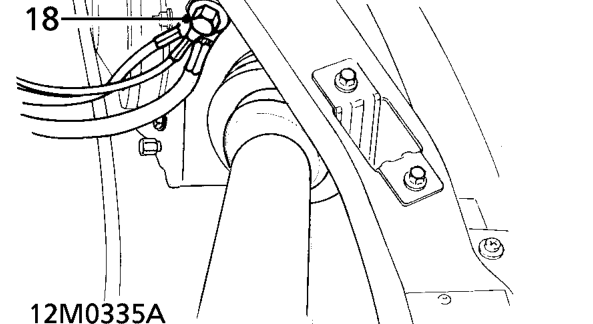

  1. Remove bolt securing earth leads to body.
Remove bolt securing earth leads to body.

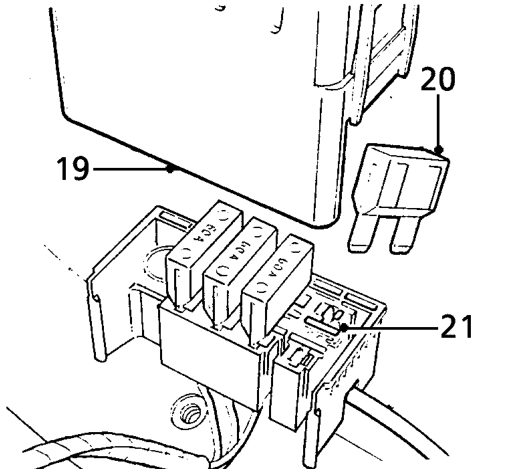

  1. Remove fuse box lid.
  2. Remove main 30 amp fuse.
  3. Depress retainer and slide battery lead connector from fuse box.
