EngineEngine and gearbox assembly · page 8 of 9

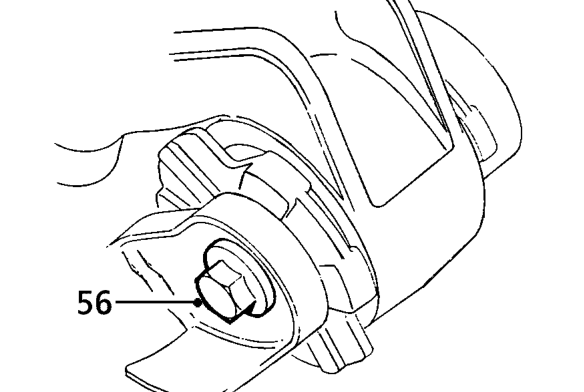

- Remove through bolt from engine RH mounting.

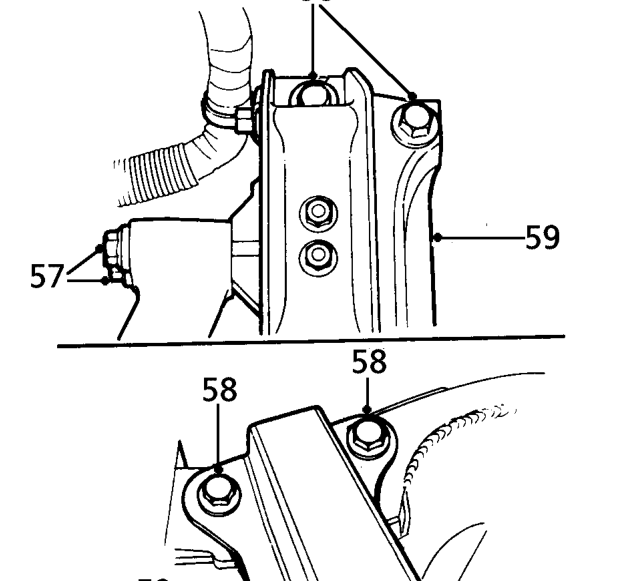

- Remove 2 bolts securing LH mounting bracket to mounting.
- Remove 4 bolts securing mounting support member to sub frame.
- Remove support member.
- Raise and tilt power unit with gearbox down slightly.
CAUTION: Ensure gear selector levers are pushed against cross-member and gearbox to avoid damage during lifting.
- Manoeuvre power unit across engine compartment, ensure gear linkage is clear and lift power unit from vehicle.
