04 · Engine

Engine and gearbox assembly (page 4 of 9)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
EngineEngine and gearbox assembly · page 4 of 9
Diagram

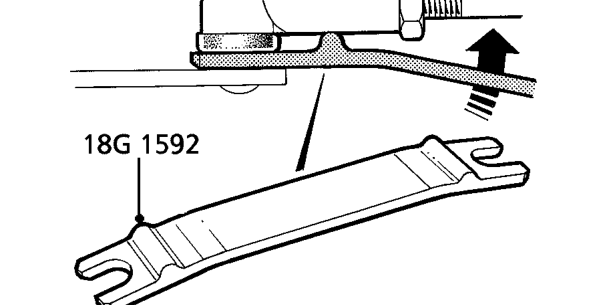

  1. Using tool 18G 1592 , disconnect gear change linkage ball joint from upper selector lever.
  2. Drain cooling system. See REPAIR MANUAL - Maintenance.
Drain cooling system. See REPAIR MANUAL - Maintenance.

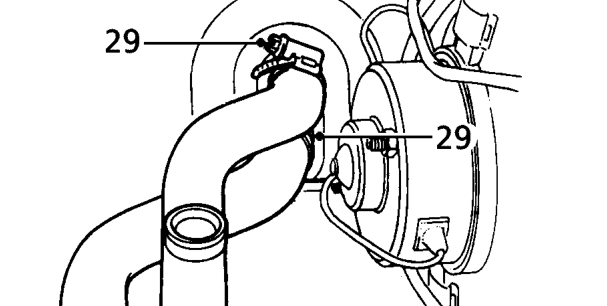

  1. Loosen clip and disconnect top hose from cylinder head.
Loosen clip and disconnect top hose from cylinder head.

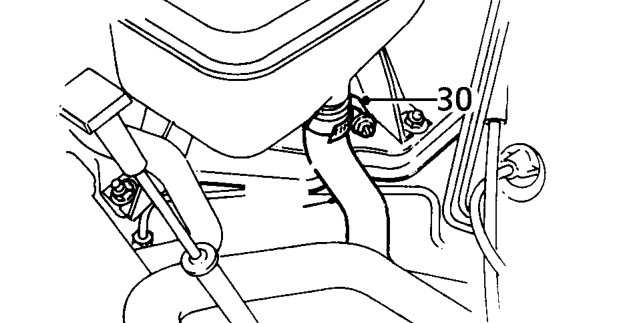

  1. Loosen 2 clips and disconnect 2 hoses from heater.
Loosen 2 clips and disconnect 2 hoses from heater.
  1. Loosen clip and disconnect hose from expansion tank.
