Rover 100 Repair Manual Supplement (1996-1998)04 · Engine
04 · Engine

Engine and gearbox assembly (page 5 of 9)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
EngineEngine and gearbox assembly · page 5 of 9
Diagram

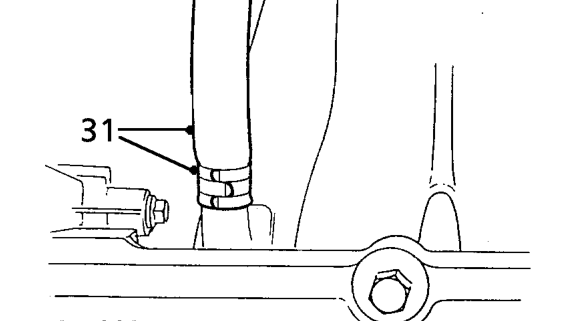

  1. Release clip and disconnect coolant hose from inlet manifold.

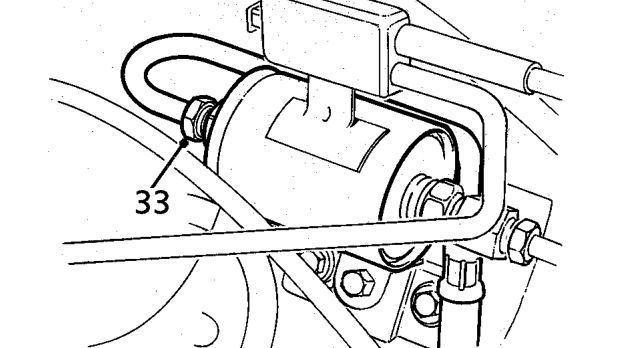

  2. Position cloth to fuel feed union.
Position cloth to fuel feed union.
  1. Use a backing spanner and disconnect fuel feed union from filter.

CAUTION: Plug the connections.

Use a backing spanner and disconnect fuel feed union from filter.

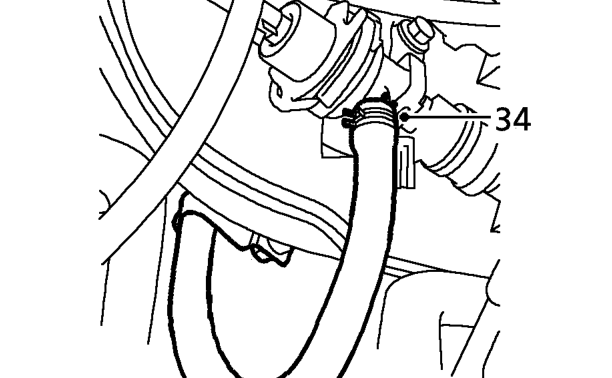

  1. Release clip and disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

Release clip and disconnect fuel return hose from fuel rail.

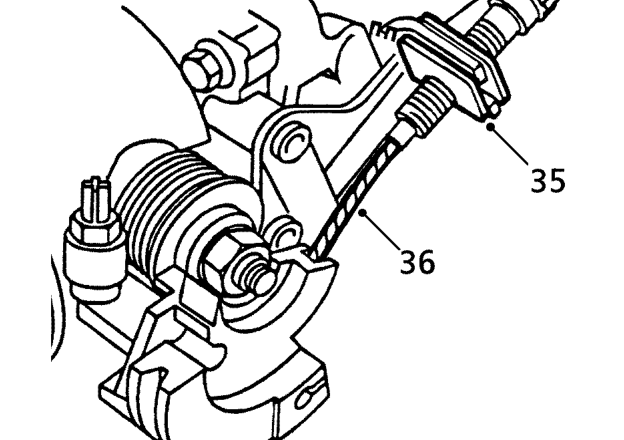

  1. Release throttle cable adjusting nut from abutment bracket.
  2. Disconnect throttle cable from throttle cam and move aside
