Rover 100 Repair Manual Supplement (1996-1998)04 · Engine
04 · Engine

Engine and gearbox assembly (page 3 of 9)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
EngineEngine and gearbox assembly · page 3 of 9
Diagram

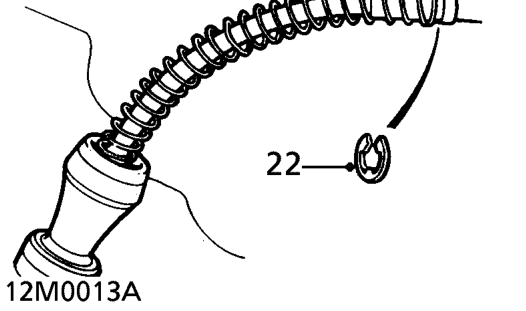

  1. Remove clutch cable tension spring ’C’ clip
Remove clutch cable tension spring ’C’ clip

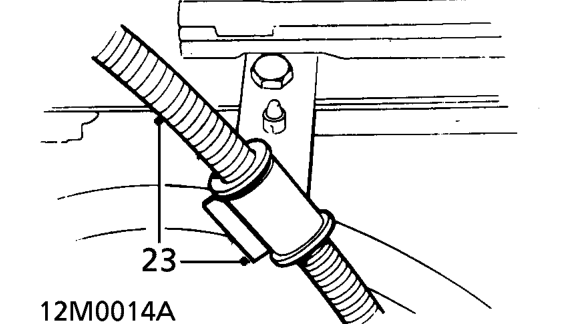

  1. Release clutch cable from bulkhead clip.
Release clutch cable from bulkhead clip.

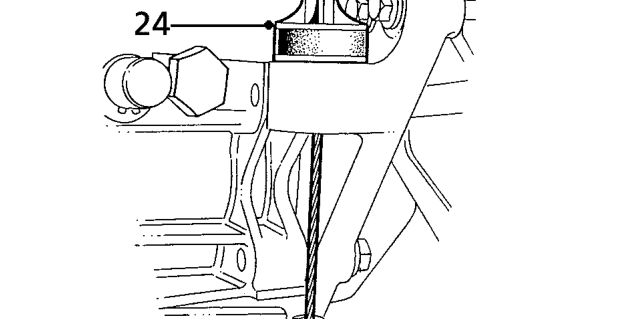

  1. Release clutch cable from release lever and abutment bracket, position cable aside.
Release clutch cable from release lever and abutment bracket, position cable aside.

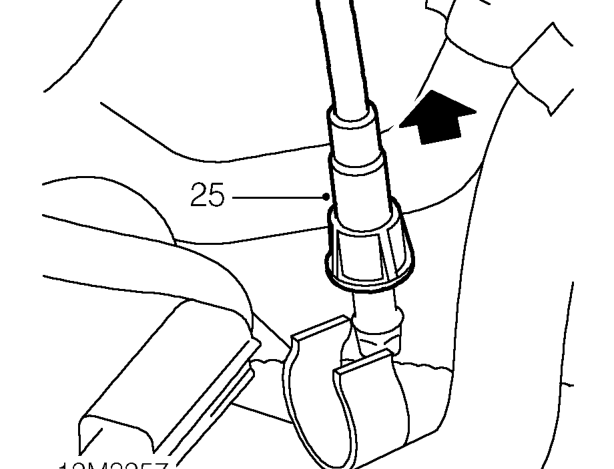

  1. Release clip securing speedo cable joint and separate upper cable from lower cable.
