Rover 200 Workshop Manual (1995-1999)05 · Engine - K8
05 · Engine

Cylinder head gasket (page 2 of 5)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - K8Cylinder head gasket · page 2 of 5

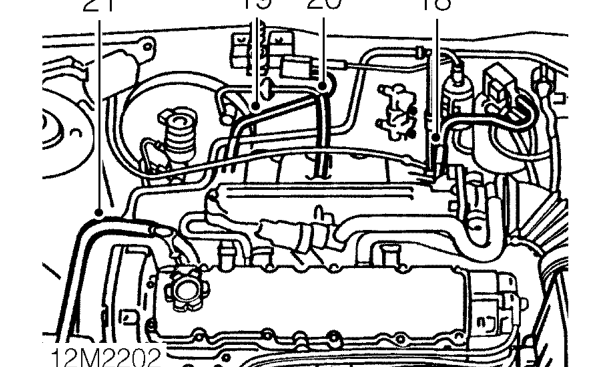

Diagram
  1. Release clip securing evaporative emission canister vacuum pipe to inlet manifold and disconnect pipe.
  2. Disconnect ECM vacuum pipe from inlet manifold.
  3. Depress plastic collar on quick release connector and disconnect brake servo vacuum hose from inlet manifold.
  4. Release clip securing coolant pipe to inlet manifold and disconnect pipe.
  5. Position absorbent cloth around fuel filter outlet union.

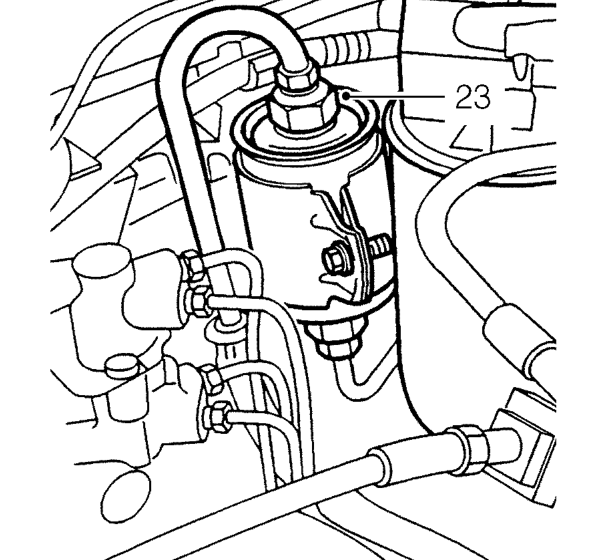

Position absorbent cloth around fuel filter outlet union.
  1. Loosen fuel filter outlet union to relieve fuel pressure.
  2. Re-tighten union to 28 Nm.

CAUTION: To prevent damage to fuel system pipes or components, use two spanners when loosening or tightening unions.
