Rover 200 Workshop Manual (1995-1999)05 · Engine - K8
05 · Engine

Cylinder head gasket (page 4 of 5)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - K8Cylinder head gasket · page 4 of 5
Diagram

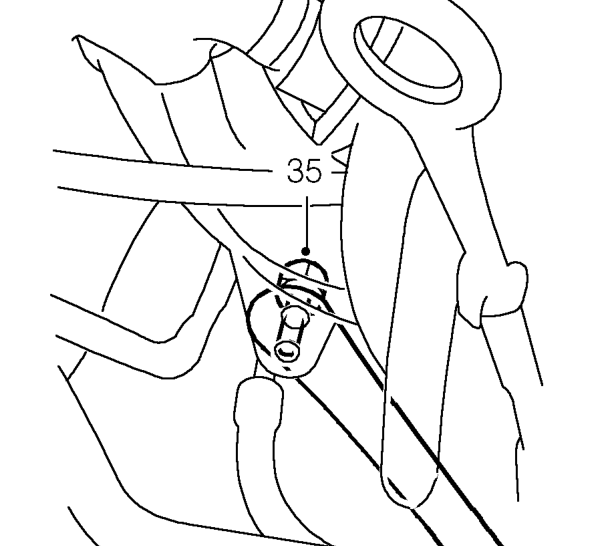

  1. Remove bolt securing inlet manifold to support bracket.
Remove bolt securing inlet manifold to support bracket.

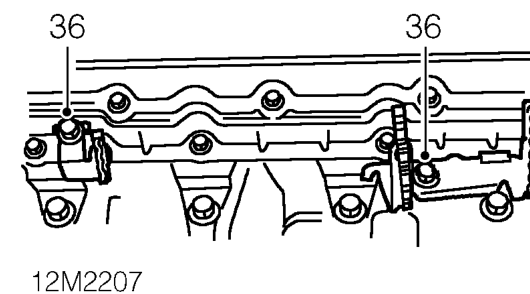

  1. Remove 3 bolts securing both h.t. lead guide brackets to cylinder head and collect brackets.
  2. Remove camshaft cover. See this section.
Remove camshaft cover. See this section.

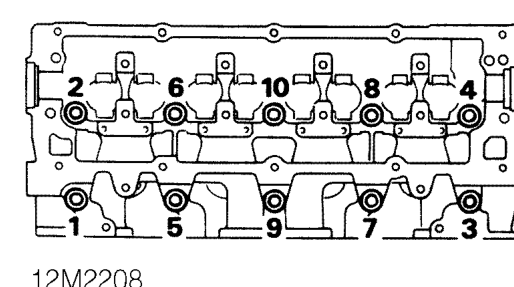

  1. Remove 10 cylinder head bolts in sequence shown. Remove bolts and store in fitted order.
  2. Using assistance, remove cylinder head assembly from cylinder block.
  3. Remove cylinder head gasket from cylinder block and discard.
Remove cylinder head gasket from cylinder block and discard.
  1. Remove 2 location dowels from cylinder block.

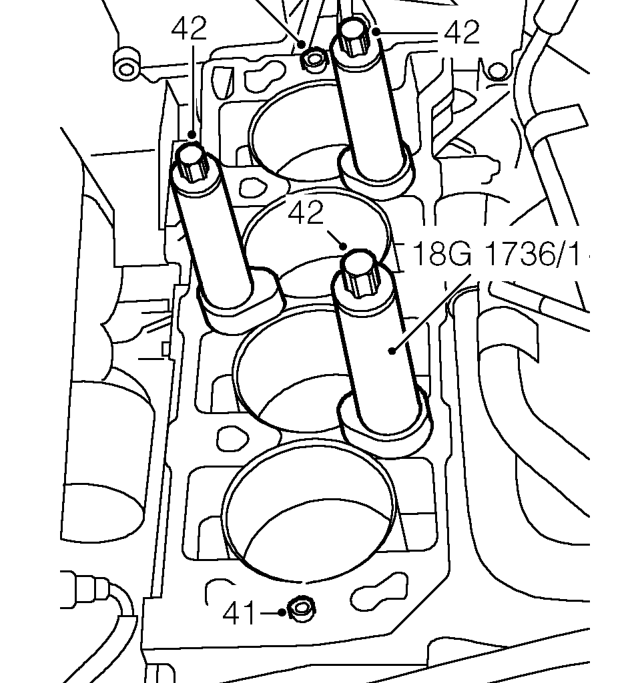

  2. Fit cylinder liner clamps 18G 1736/1 to cylinder block and secure with cylinder head bolts.

CAUTION: Do not rotate crankshaft with cylinder head removed. Place cylinder head on blocks of wood to avoid damaging valves.
