Rover 200 Workshop Manual (1995-1999)05 · Engine - K8
05 · Engine

Cylinder head gasket (page 3 of 5)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - K8Cylinder head gasket · page 3 of 5
Diagram

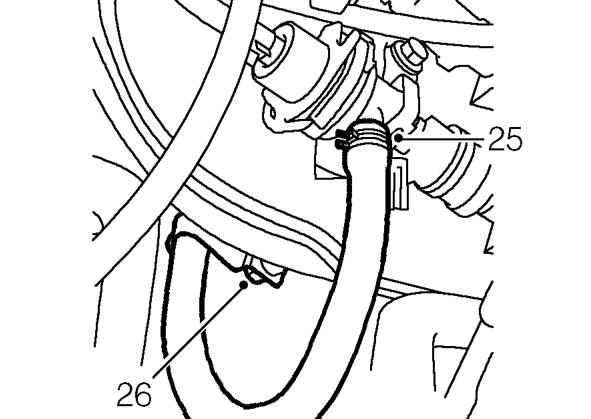

  1. Release clip securing fuel return pipe to fuel rail and disconnect pipe.

CAUTION: Plug fuel system hoses and connections.

  1. Release fuel return pipe from 2 clips on underside of inlet manifold.
Release fuel return pipe from 2 clips on underside of inlet manifold.

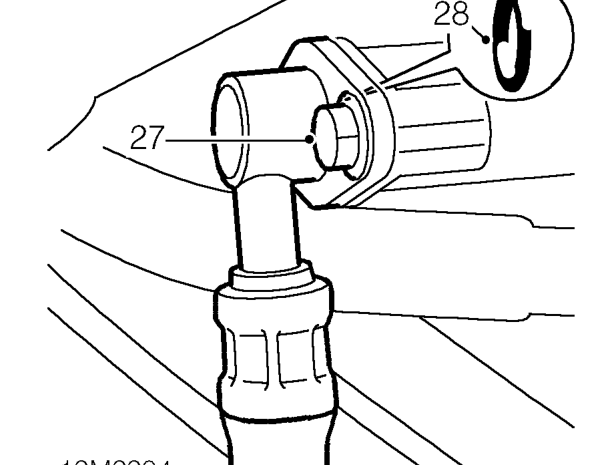

  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Remove fuel feed pipe from fuel rail and discard ’O’ ring.
Remove fuel feed pipe from fuel rail and discard ’O’ ring.

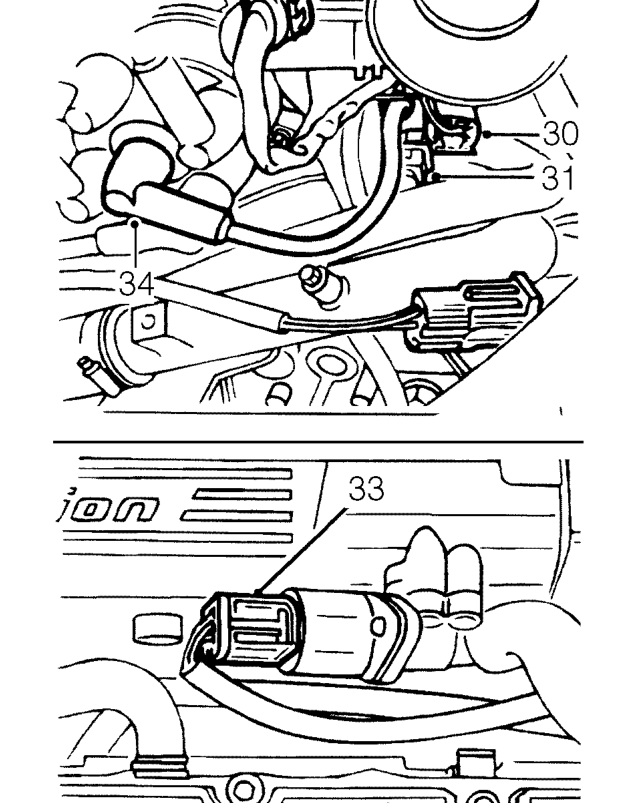

  1. Release injector harness multiplug from bracket on throttle body.
  2. Disconnect multiplug from injector harness.
  3. Disconnect multiplug from IAT sensor.
  4. Disconnect multiplug from TP sensor.
  5. Disconnect multiplug from IACV.
  6. Disconnect coil h.t. lead from distributor.
