Glow plugs (page 2 of 2)

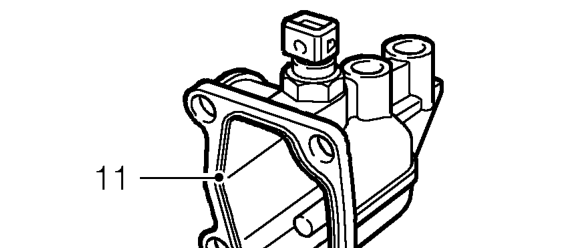

11. Remove coolant outlet elbow, and discard seal.

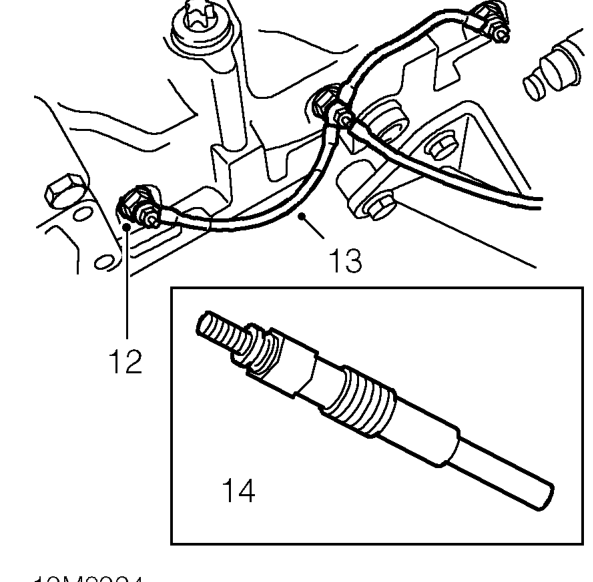

12. Remove 3 terminal nuts securing feed leads to glow plugs.
13. Disconnect and remove glow plug leads.
14. Remove 3 glow plugs.

Refit

1. Thoroughly clean glow plugs and glow plug seating area in cylinder head.
2. Apply a suitable anti-sieze compound to threads of glow plugs.
3. Fit glow plugs and tighten to 20 Nm.
4. Connect feed leads to glow plugs.
5. Fit and tighten terminal nuts.

NOTE: Harness feed lead must be connected to No. 2 glow plug.

6. Clean mating faces of coolant outlet elbow and cylinder head.
7. Fit new seal to coolant outlet elbow.
8. Position coolant outlet elbow to cylinder head, fit bolts and tighten to 25 Nm.
9. Align dipstick tube bracket to coolant outlet elbow and secure with bolt.
10. Align brake servo vacuum pipe to outlet elbow and secure with bolt.
11. Connect temperature gauge sensor Lucar to harness.
12. Connect multiplug to ECT sensor.
13. Connect radiator top hose to coolant outlet elbow and tighten clip.
14. Models with air conditioning: Fit alternator. See ELECTRICAL, Repairs.
15. Fit engine acoustic cover. See BODY, Exterior fittings.
16. Connect battery earth lead.
17. Refill cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.
