05 · Engine

Rear engine mounting (page 2 of 3)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - K SeriesRear engine mounting · page 2 of 3
Diagram

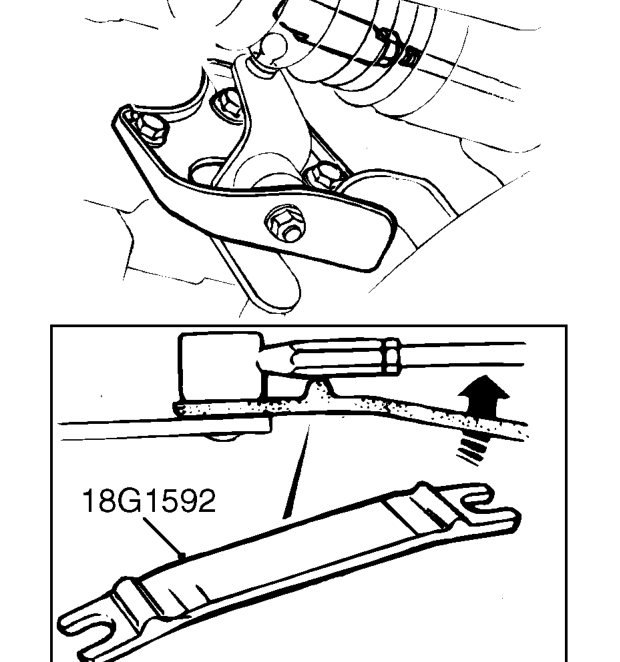

  1. Using tool 18G 1592 release gear selector linkage ball joint from gear selector lever.
  2. Using tool 18G 1592 release gear change linkage ball joint from gear change lever.

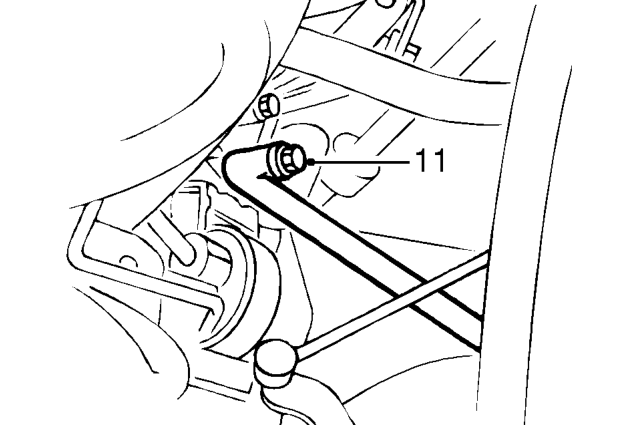

Using tool 18G 1592 release gear change linkage ball joint from gear change lever.
  1. Remove bolt securing steady bar to engine.

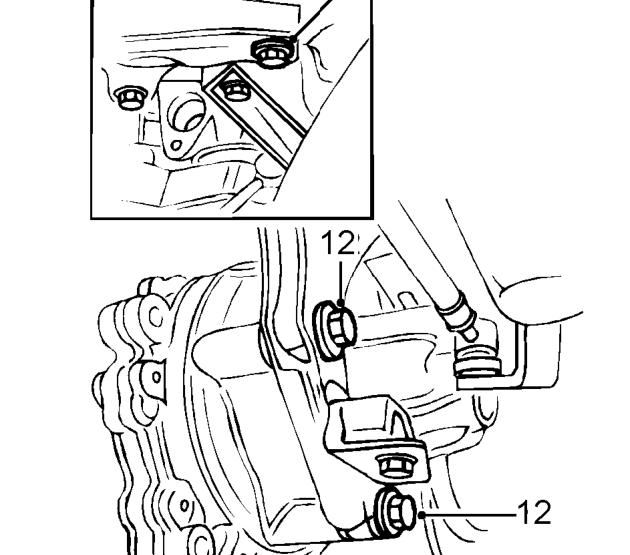

Remove bolt securing steady bar to engine.
  1. Remove 3 bolts securing rear engine mounting bracket to engine.

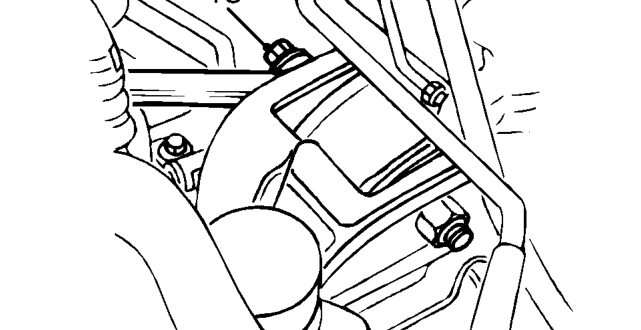

Remove 3 bolts securing rear engine mounting bracket to engine.
  1. Remove through bolt securing rear engine mounting bracket to rear engine mounting.
  2. Remove engine steady bar.
  3. Using tool 18G 1592 release gear selector linkage ball joint from gear selector.
  4. Remove gear selector linkage.
  5. Remove rear engine mounting bracket.
