Workshop Manuals Factory service & repair Rover
Rover 600 Repair Manual Supplement (1993-1999)12 · Body
12 · Body & interior

Sun roof glass

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Sunroof › Sun roof glass
BodySun roof glass

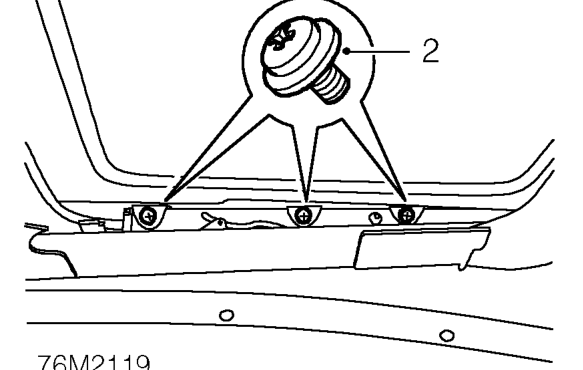

SUN ROOF GLASS

Service repair no - 76.82.05

Remove

Sun roof glass – Service repair no - 76.82.05
  1. Slide back the sunshade.
  2. Remove 6 screws, and remove the glass.

Refit

  1. Fit glass to sun roof and align to brackets.

NOTE: Apply thread locking fluid to the screws.

  1. Fit but do not tighten screws securing glass to sun roof.
  2. Adjust height of glass. See this section.

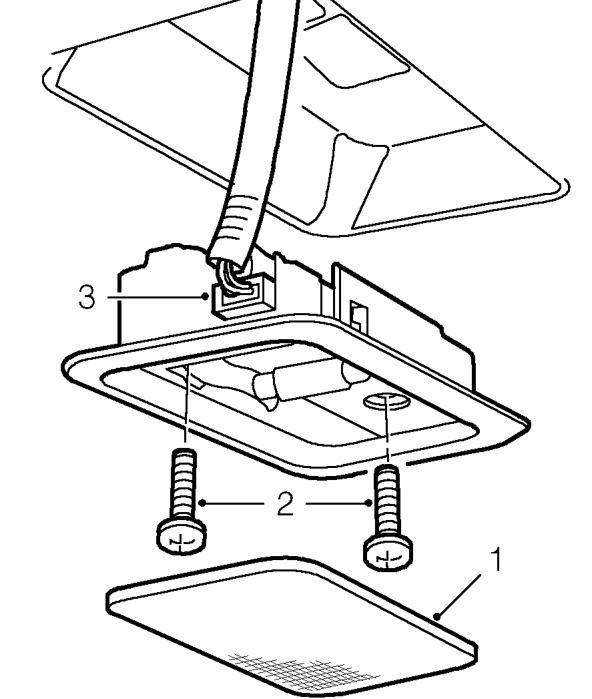

SUNROOF RELAY

Service repair no - 76.82.43

Remove

Sunroof relay – Service repair no - 76.82.43
  1. Remove lens from rear interior lamp.
  2. Remove 2 screws securing lamp.
  3. Release lamp from headlining, disconnect multiplug and remove lamp.
