Rover 600 Repair Manual Supplement (1993-1999)12 · Body
12 · Body & interior

Sun roof

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Sunroof › Sun roof
BodySun roof · page 1 of 2

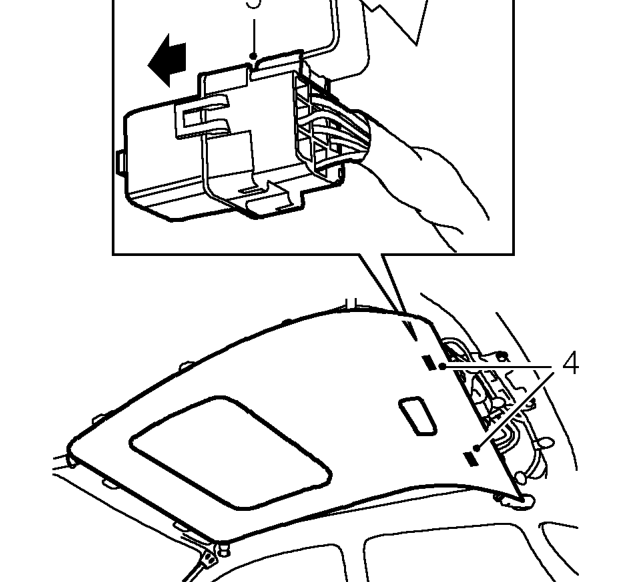

Diagram
  1. Release 2 clips securing rear edge of headlining.
  2. Release relay holder from bracket and remove relay.

Refit

  1. Fit relay to holder and secure holder to bracket.
  2. Secure headlining clips to roof.
  3. Position lamp to roof and connect multiplug.
  4. Fit lamp to roof and secure lamp with screws.
  5. Fit lamp lens.

SUN ROOF

Service repair no - 76.82.44

Remove

  1. Remove headlining, See REPAIR MANUAL - Body.

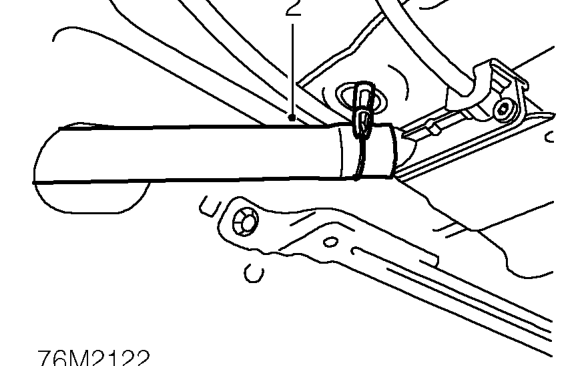

Sun roof – Remove headlining, See REPAIR MANUAL - Body.
  1. Release 4 clips and disconnect drain tubes.

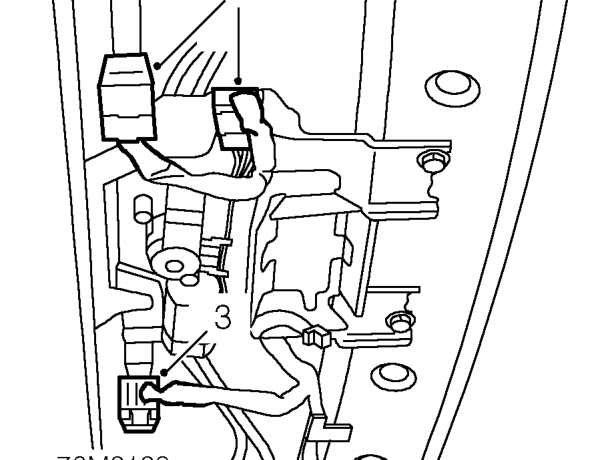

Sun roof – Release 4 clips and disconnect drain tubes.
  1. Disconnect harness from sun roof motor multiplug and release both relay holders from bracket.
