Rover 600 Repair Manual Supplement (1993-1999)12 · Body
12 · Body & interior

Sun roof (page 2 of 2)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Sunroof
BodySun roof · page 2 of 2
Diagram
  1. Remove 2 bolts securing RH rear grab handle bracket to roof.
  2. Remove bracket.
Remove bracket.

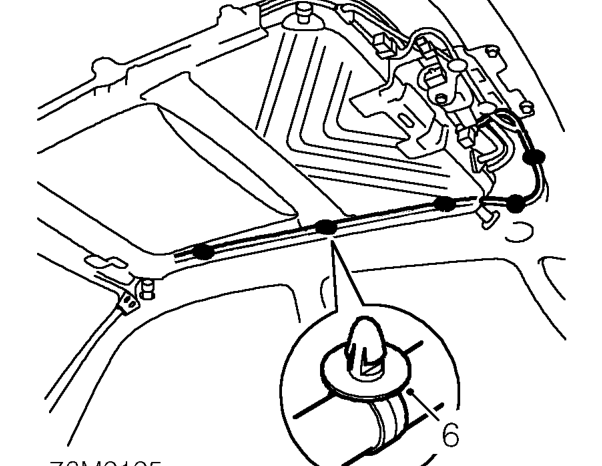

  1. Release 5 clips securing harness to sunroof tray.
Release 5 clips securing harness to sunroof tray.

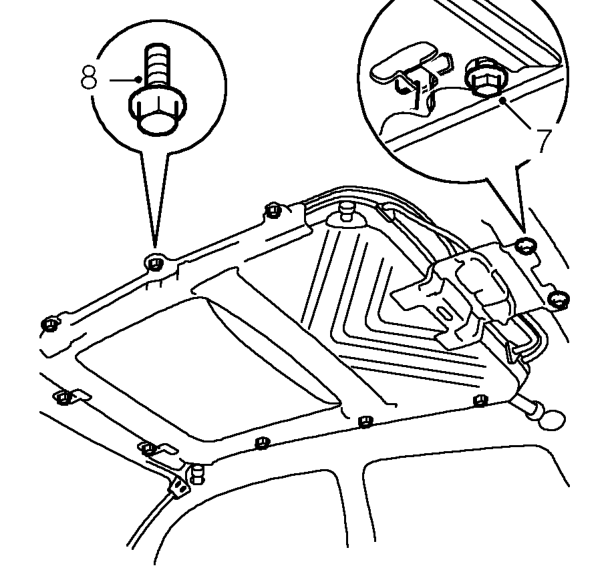

  1. Slacken 2 bolts securing motor bracket to roof panel.
  2. Remove 8 bolts, release rear hooks and remove sunroof assembly.

NOTE: Assistance may be required to remove the sunroof assembly.
