Cylinder head/valve train: repairs
EngineRefit · page 2 of 2
  1. Install the back cover.
  2. Install the key and the camshaft pulley onto the camshaft, then tighten the pulley bolt to the torque shown.

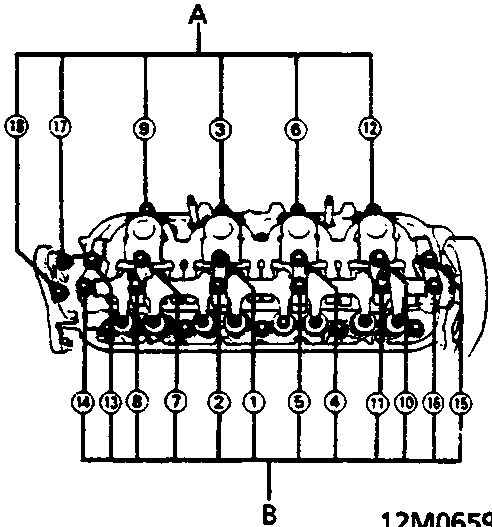

Diagram showing cylinder head tightening sequence with numbered bolts and labels A and B indicating bolt sizes

A   6mm bolts

B   8mm bolts

  1. Tighten each bolt two turns at a time in the sequence shown to ensure that the rockers do not bind on the valves.

Specified torque:
8mm bolts: 22 Nm
6mm bolts: 12 Nm

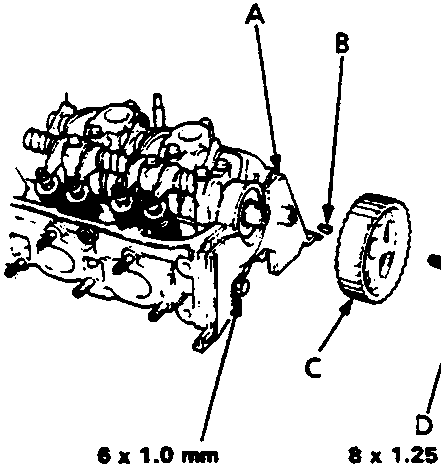

Diagram showing installation of back cover, key, camshaft pulley and pulley bolt with dimensions and torque values

A   Back cover

B   Key

C   Camshaft pulley

D   Pulley bolt
