Cylinder head/valve train: repairs
EngineRefit · page 2 of 2

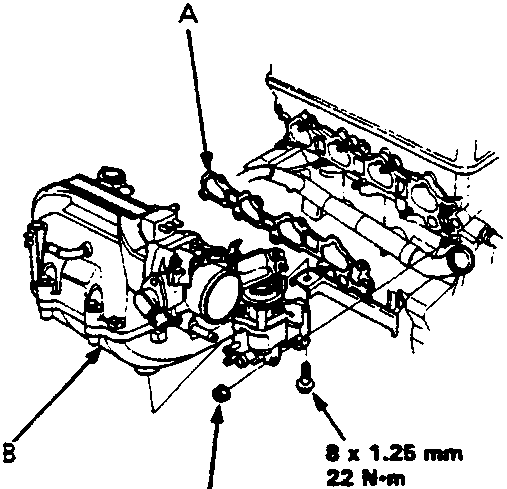

Diagram of intake manifold installation showing callouts A and B with torque specifications 8 x 1.25 mm 22 N m

A    Gasket

B    Intake manifold

  1. Install a new intake manifold gasket.
  2. Install the intake manifold and tighten the nuts in a diagonal pattern in 2 or 3 steps, beginning with the inner nuts.
  3. Install the heat insulator to the cylinder head and the block.

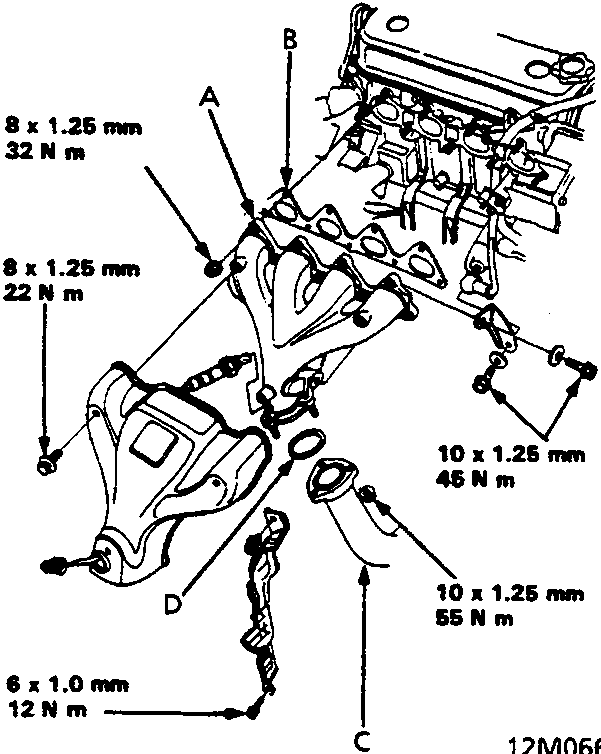

Diagram of exhaust manifold installation showing callouts A, B, C, D with various torque specifications including 8 x 1.25 mm 32 N m, 8 x 1.25 mm 22 N m, 10 x 1.25 mm 45 N m, 10 x 1.25 mm 55 N m, and 6 x 1.0 mm 12 N m

A    Exhaust manifold

B    Gasket

C    Exhaust pipe

D    Gasket

  1. Install a new exhaust manifold gasket.
  2. Install the exhaust manifold using new exhaust manifold nuts, and tighten the nuts in a diagonal pattern in 2 or 3 steps, beginning with the inner nut.
  3. Install a new gasket at exhaust pipe.
  4. Install the exhaust manifold bracket, then using new nuts, install the exhaust pipe and the bracket, and then install the cover.
