Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition03 · Engine
03 · Engine

Remove (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Cylinder head/valve train: repairs
EngineRemove · page 2 of 2

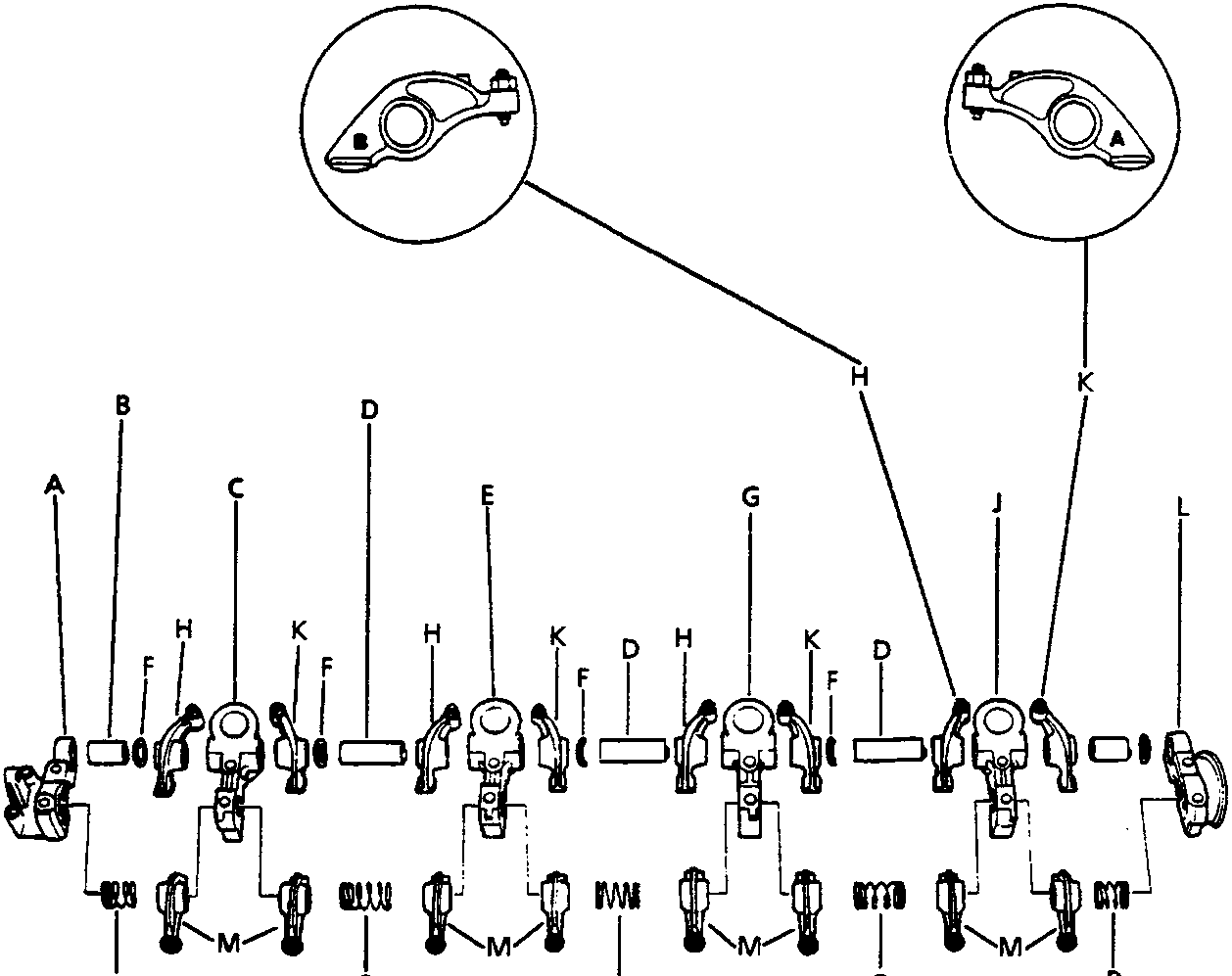

Exploded diagram of the cylinder head valve train components, including camshaft holders, rocker shafts, rocker arms, wave washers, springs, and exhaust rocker arms, labeled A through P.

12M0634

  1. A No 6 camshaft holder
  2. B Intake rocker shaft (short, 2 off)
  3. C No 5 camshaft holder
  4. D Intake rocker shaft (long, 3 off)
  5. E No 4 camshaft holder
  6. F Wave washer (5 off)
  7. G No 3 camshaft holder
  8. H Intake rocker arm (4 off)
  9. J No 2 camshaft holder
  10. K Intake rocker arm (4 off)
  11. L No 1 camshaft holder
  12. M Exhaust rocker arm (8 off)
  13. N Exhaust rocker shaft
  14. O Spring (long, 3 off)
  15. P Spring (short, 2 off)
