Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition04 · Engine management system – PGM-Fi
04 · Engine

Air Cleaner (ACL) Element Replacement

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Air Cleaner (ACL) Element Replacement
Engine management system – PGM-FiAir Cleaner (ACL) Element Replacement

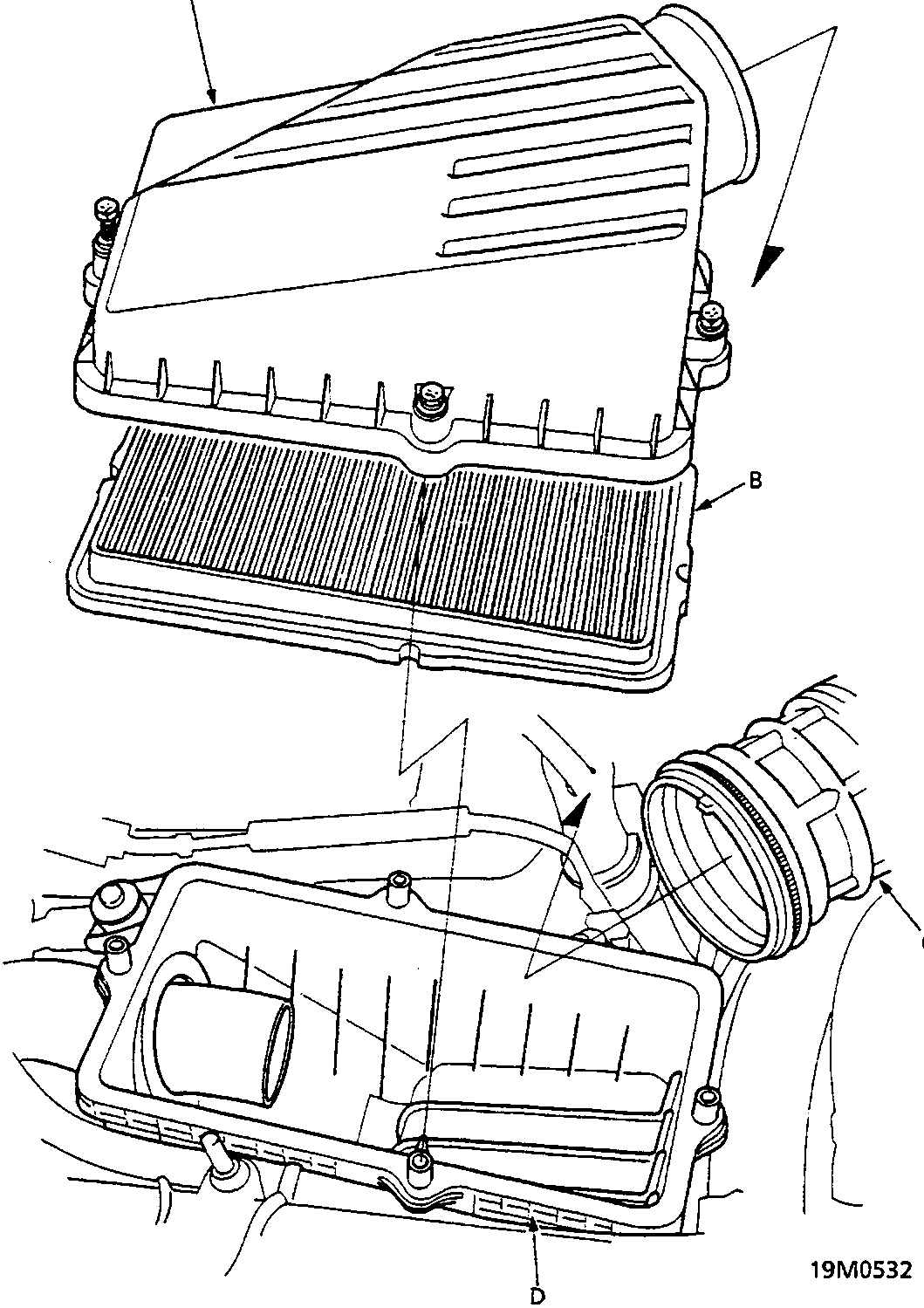

Diagram of the air cleaner assembly showing the housing cover, element, intake air duct, and housing with callout labels A, B, C, and D.
  • A ACL housing cover
  • B ACL element
  • C Intake air duct
  • D ACL housing

Air Cleaner (ACL) Element Replacement

Replace the air cleaner element every 2 years or 24,000 miles (40,000 Km) whichever comes first.
