Engine management system – PGM-FiRemove

Remove

WARNING: Do not smoke while working on fuel system. Keep open flame away from your work area.

  1. Relieve the fuel pressure.
  2. Block front wheels.
  3. Raise rear of vehicle.

WARNING: Support on safety stands.

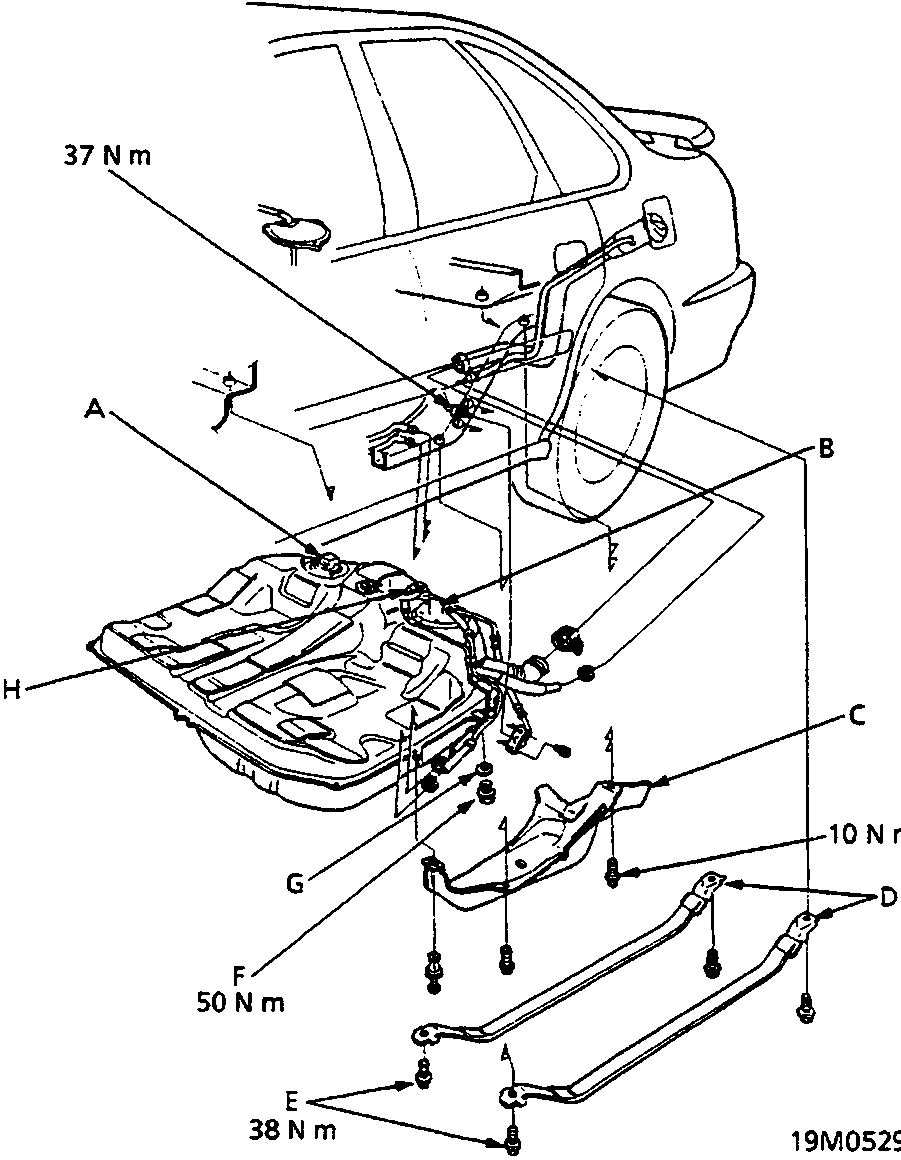

Exploded view of the fuel tank assembly showing components A through H with torque specifications: 37 N m, 10 N m, 50 N m, and 38 N m.
AFuel gauge sending unitEMounting bolt
BFuel pumpFDrain bolt
CFuel hose protectorGWasher
DTank strapsHEVAP two way valve
  1. Remove the drain bolt and drain the fuel into an approved container.
  2. Disconnect the 3P connector in the boot.
  3. Remove the evaporative emission (EVAP) two way valve cover and fuel hose protector.
  4. Disconnect the hoses.
