600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition

Section

Repairs › Refit

Engine management system – PGM-FiRefit · page 1 of 3

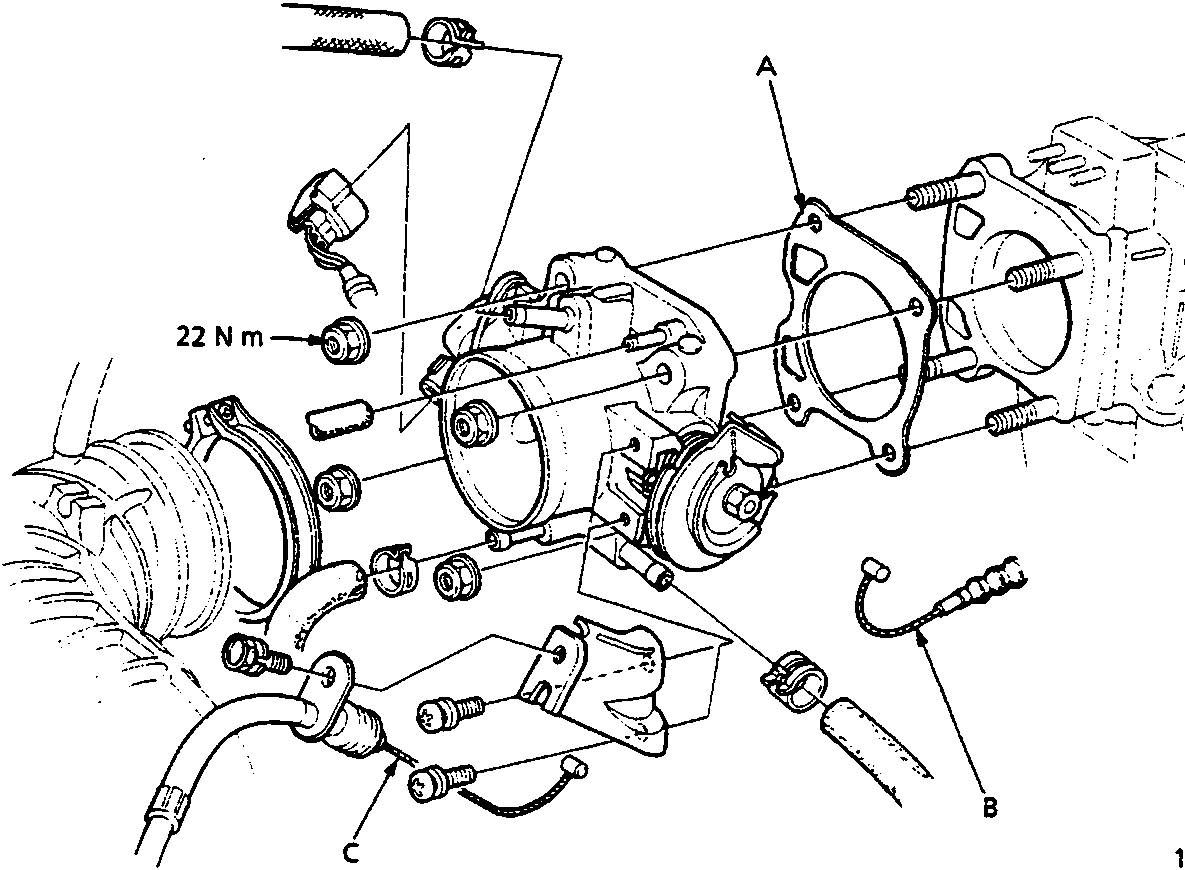

Refit

A Gasket

B Throttle cable

C A/T throttle control cable

1. Use a new gasket when installing the throttle body.

CAUTION:

• The throttle stop screw is non – adjustable.
• After reassembly, adjust the throttle cable and A/T throttle control cable for cars with A/T.

04 Engine
