Engine management system – PGM-FiRefit · page 2 of 3

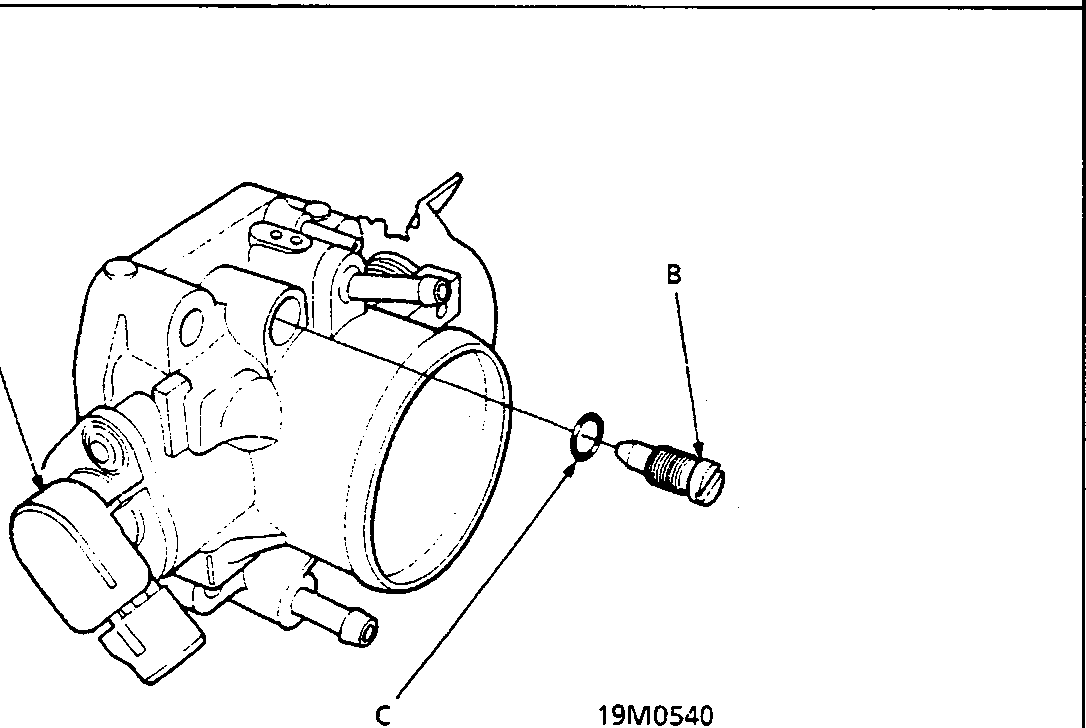

Refit (page 2 of 3) – diagram from the Engine management system – PGM-Fi chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Diagram of throttle body assembly showing Throttle Position (TP) sensor, idle adjusting screw, and 'O' ring
AThrottle Position (TP) sensorC'O' ring
BIdle adjusting screw
  1. Use a new 'O' ring when installing the idle adjusting screw.
