Engine management system – PGM-FiRefit · page 1 of 3

WARNING: Do not smoke when working on the fuel system. Keep open flames away from your work area.

  1. Relieve fuel pressure.

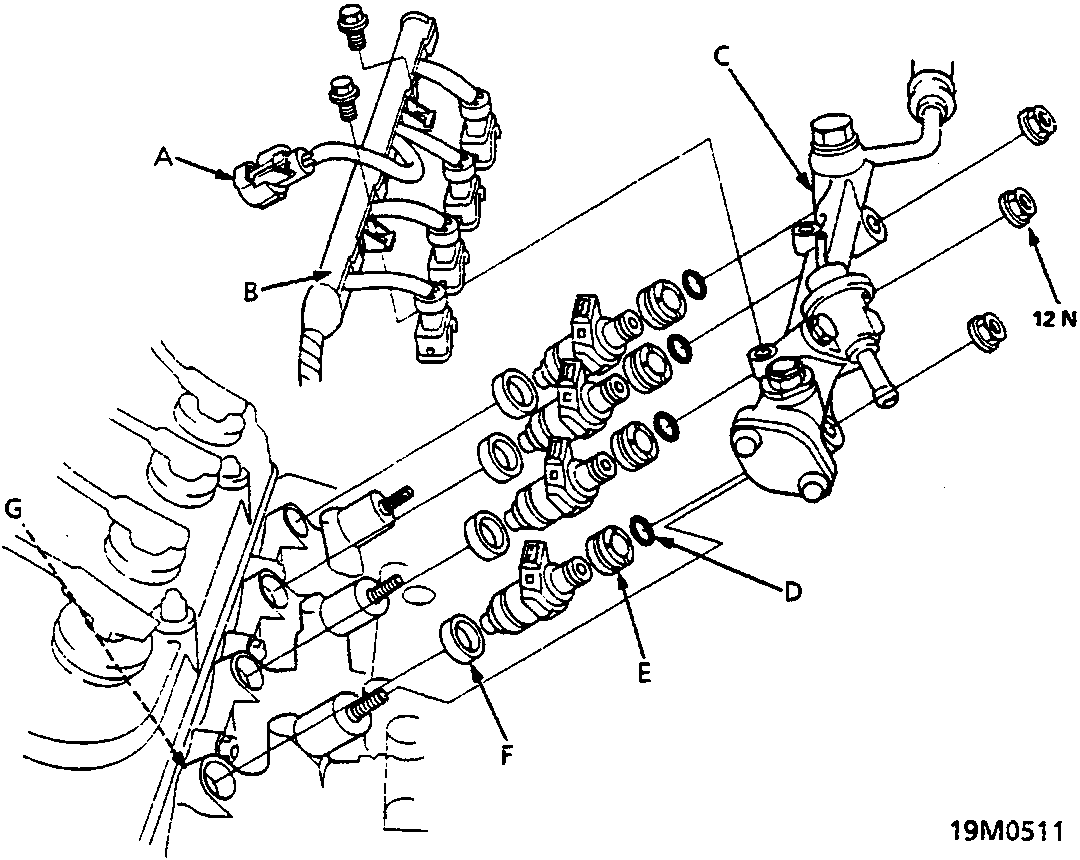

Exploded view of the fuel rail, fuel injectors, and associated connectors showing labels A through G and a torque value of 12 Nm.
  1. A IAC valve connector
  2. B Harness holder
  3. C Fuel rail
  4. D 'O' ring
  5. E Cushion ring
  6. F Seal ring
  7. G Fuel injector insulator
  1. Disconnect the connectors from the fuel injectors and IAC valve.
  2. Disconnect the vacuum hose and fuel return hose from the fuel pressure regulator.

Note: Place an absorbent cloth over the hoses before disconnecting them.

  1. Disconnect the fuel hose from the fuel rail.
  2. Loosen the retainer nuts on the fuel rail and harness holder.
  3. Disconnect the fuel rail.
  4. Remove the fuel injectors from the intake manifold.

Refit

  1. Slide new cushion rings onto the fuel injectors.
  2. Coat new 'O' rings with clean engine oil and put them on the fuel injectors.
  3. Fit new fuel injector insulators to the intake manifold.
  4. Insert the fuel injectors into the fuel rail first.
  5. Coat new seal rings with clean engine oil and press them into the intake manifold.
