Engine management system – PGM-FiRefit · page 2 of 3
Diagram showing fuel rail assembly with callouts A, B, and C

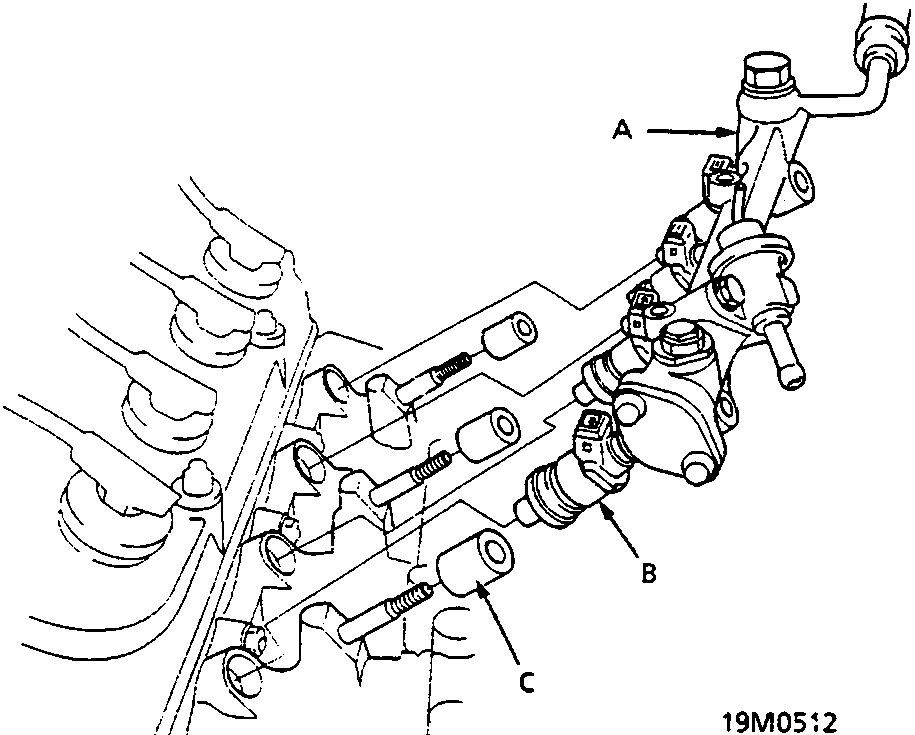

A Fuel rail B Fuel injector C Fuel rail insulator 6. Fit the fuel injectors and fuel rail assembly to the intake manifold. CAUTION: To prevent damage to the 'O' rings, fit the fuel injectors to the fuel rail first, then fit the fuel rail to the intake manifold.
Diagram showing alignment of connector centre line with mark on fuel rail, with callouts A, B, and C

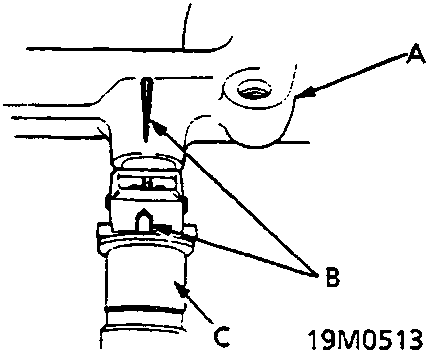

A Fuel rail B Markings C Fuel injector 7. Align the centre line on the connector with the mark on the fuel rail. 8. Fit and tighten the retainer nuts. 9. Connect the fuel hose to the fuel rail with new washers. 10. Connect the vacuum hose and fuel return hose to the fuel pressure regulator.
