Engine management system – PGM-FiRemove

Remove

  1. Remove 4 securing screws and remove lower heat shield from catalyst.

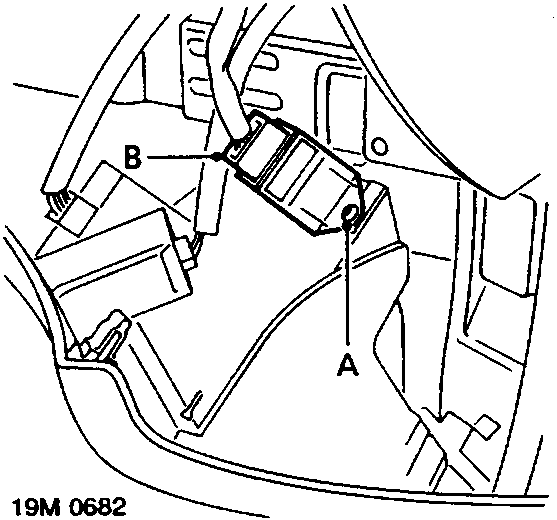

Diagram showing the overheat sensor module (A) and sensor connector (B) located near the catalyst.
  1. A Overheat sensor module
  2. B Sensor connector – 6P
  1. Remove retaining screw and release lower panel from dash, retained by 5 clips.
  2. Remove screw and release sensor module from panel.
  3. Disconnect 6P connector and remove sensor module.

Refit

  1. Refit is reversal of removal procedure.
