Engine management system – PGM-FiInspection

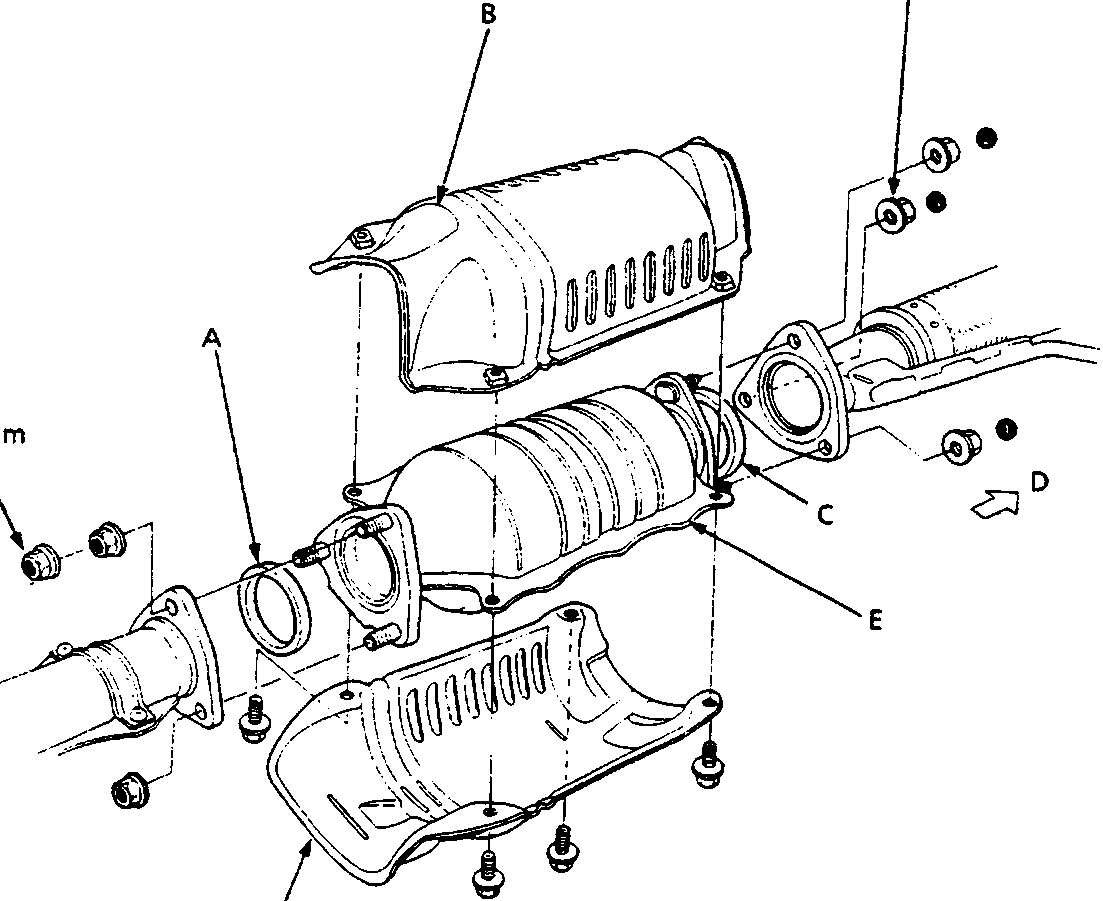

Exploded view diagram of the catalytic converter assembly showing heat shields, gaskets, and bolts with torque specifications.
  • A Gasket
  • B Heat shield
  • C Gasket
  • D Front of vehicle
  • E Catalytic converter
  • F Heat shield

Inspection

If excessive exhaust system back pressure is suspected, remove the catalytic converter form the car and make a visual inspection for plugging, melting or cracking of the catalytic converter. Replace the catalytic converter if there are signs of damage.
