SuspensionFront lower arm bushing replacement · page 2 of 8

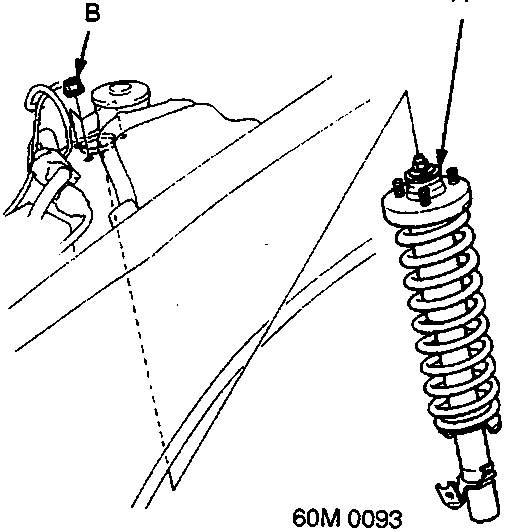

Diagram showing damper assembly with callouts A and B
  • A Damper
  • B Damper mounting nuts
  1. Remove the damper by removing the damper mounting nuts.

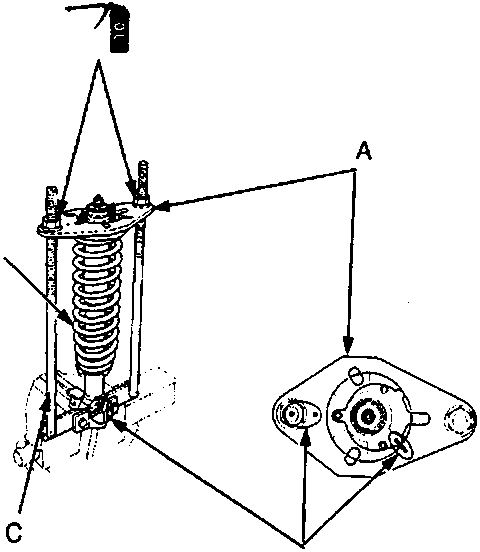

Diagram of damper disassembly setup with callouts A, B, C, and D
  • A Suspension mount plate
  • B Paint marks
  • C Spring compressor
  • D Damper
  1. Install the damper on the spring compressor by holding the bottom of the damper, and loosely install the holder and bolts.
  2. Install the suspension mount plate on the spring compressor.
  3. Support the spring compressor with damper on the vice, then tighten the damper holder bolts securely.

CAUTION: Do not over tighten the bolts.

  1. Mark the damper case and the spring compressor holder with paint as shown.
  2. Mark the mount plate and the spring compressor, and mark plate and damper mounting base with paint as shown.
