13 · Steering & suspension

Hub unit removal and wheel bearing replacement (page 2 of 5)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
SuspensionHub unit removal and wheel bearing replacement · page 2 of 5

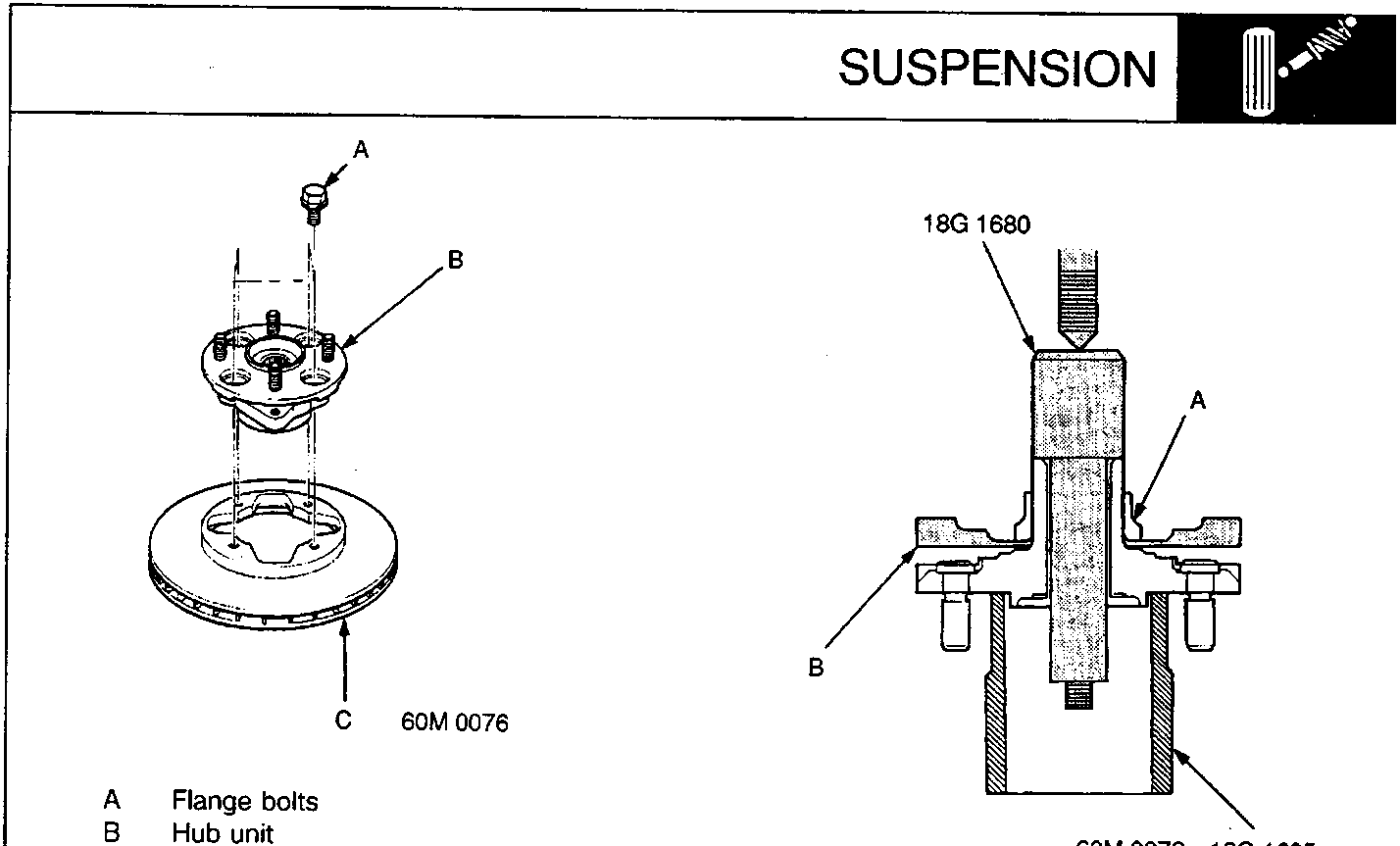

Two diagrams showing wheel hub assembly and bearing separator tool application

A Flange bolts

B Hub unit

C Brake disc

A Wheel bearing inner race

B Bearing separator

  1. Remove the four flange bolts, then separate the hub unit from the brake disc.

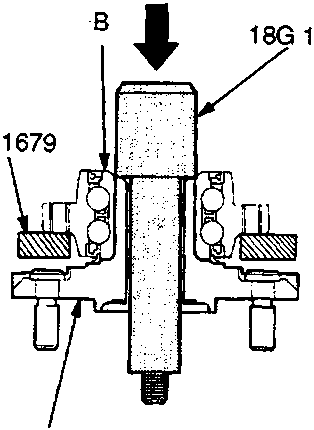

Diagram showing wheel bearing separation using special tools 18G 1679 and 18G 1680 on front hub

A Front hub

B Wheel bearing

  1. Separate the wheel bearing from the front hub using the special tools and a press.

CAUTION: Hold onto the hub to keep it from falling when pressed clear.

  1. Press the wheel bearing inner race from the hub using the special tools and a bearing separator.
  2. Replace the bearing with a new one after removal.
