13 · Steering & suspension

Hub unit removal and wheel bearing replacement (page 5 of 5)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
SuspensionHub unit removal and wheel bearing replacement · page 5 of 5

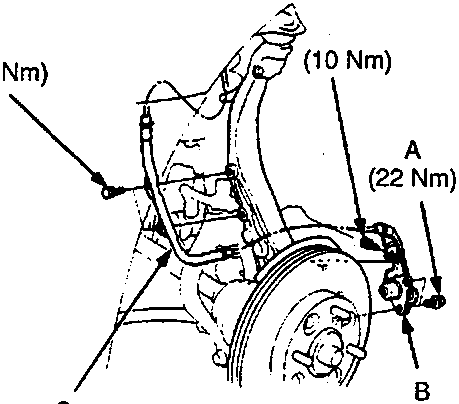

Diagram of wheel sensor and wire bracket assembly with torque values (10 Nm, 22 Nm) and labels A, B, C.

60M 0084

  1. A Sensor mounting bolts
  2. B Wheel sensor
  3. C Wheel sensor wire bracket
  4. Install the wheel sensor with the sensor mounting bolts.
  5. Install the wheel sensor wire bracket with the two flange bolts.

Note: Be careful when installing the sensors to avoid twisting wires.

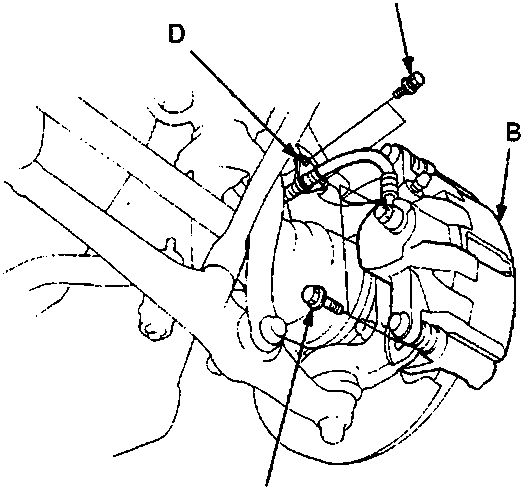

Diagram of brake caliper and hose bracket assembly with torque values (10 Nm, 110 Nm) and labels A, B, C, D.

60M 0085

  1. A Brake hose mounting bolts
  2. B Caliper
  3. C Caliper bracket mounting bolts
  4. D Brake hose bracket
  1. Install the caliper with the caliper bracket mounting bolts.
  2. Install the brake hose bracket with the brake hose mounting bolts.

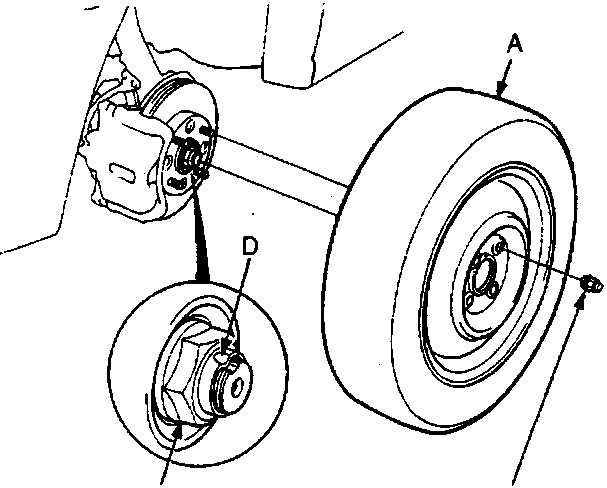

Diagram of front wheel, spindle nut, and staking detail with torque values (250 Nm, 110 Nm) and labels A, B, C, D.

60M 0086

  1. A Front wheel
  2. B Wheel nut
  3. C Spindle nut
  4. D Stake the spindle nut
  1. Tighten the new spindle nut and stake the shoulder of the nut against the drive saht.

Note: Before installing the wheel, clean the mating surface of the brake disc and inside of the wheel.

  1. Install the front wheel with the wheel nuts.
