Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement22 · Air conditioning
22 · Heating & A/C

Air conditioning switch

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Air conditioning switch
Air conditioningAir conditioning switch · page 1 of 4

AIR CONDITIONING SWITCH

Service repair no - 82.20.07

Remove

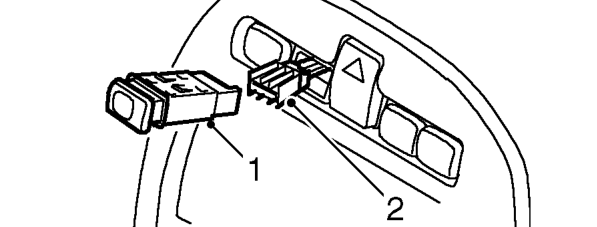

Air conditioning switch – Service repair no - 82.20.07
  1. Release air conditioning switch from centre console.
  2. Disconnect multiplug from rear of switch.
  3. Remove switch.

Refit

  1. Position switch to centre console and connect multiplug.
  2. Fit switch to centre console.

EVAPORATOR

Service repair no - 82.25.20

Remove

  1. Recover refrigerant from air conditioning system. See Adjustments.

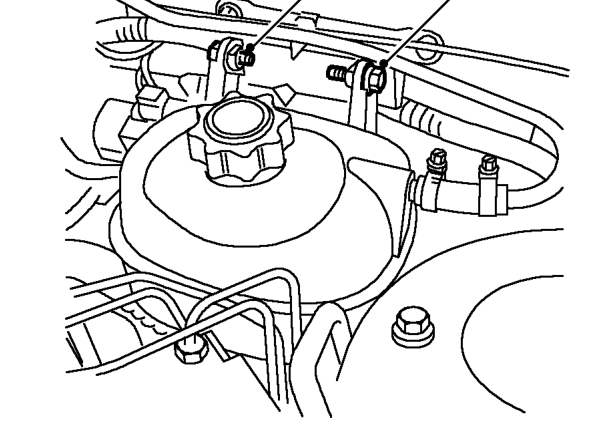

Evaporator – Recover refrigerant from air conditioning system. See Adjustments.
  1. Remove bolts securing expansion tank to bulkhead and move aside.
