Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement22 · Air conditioning
22 · Heating & A/C

Air conditioning switch (page 3 of 4)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Air conditioningAir conditioning switch · page 3 of 4

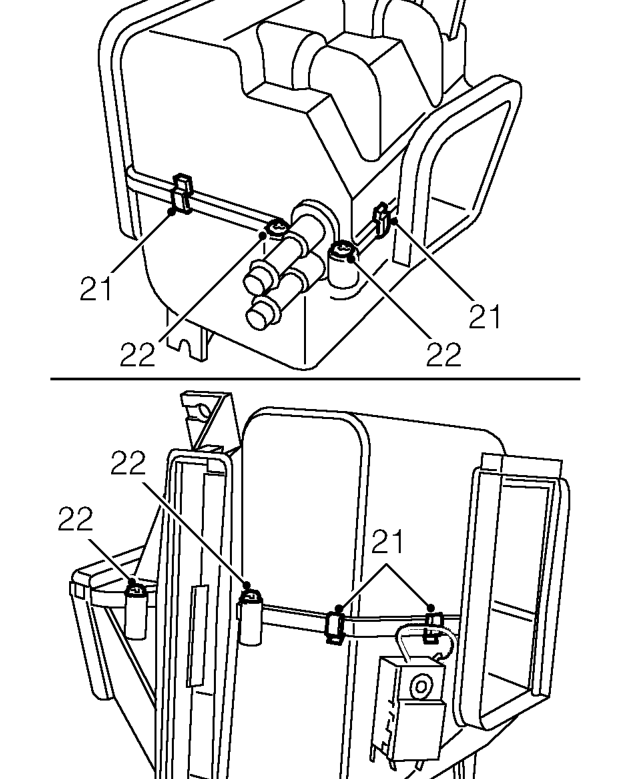

Diagram
  1. Remove 5 clips securing casing.
  2. Remove 4 screws securing casing.
  3. Using a sharp blade, cut foam seals across casing mating faces.

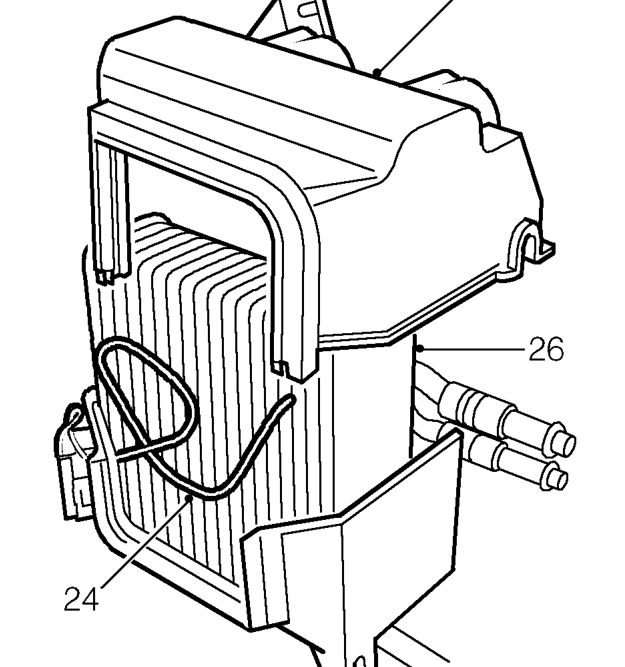

Using a sharp blade, cut foam seals across casing mating faces.
  1. Withdraw temperature sensor probe from evaporator.
  2. Remove upper casing from evaporator.
  3. Remove evaporator assembly from lower casing.
  4. Clean air conditioning pipe connections.
  5. Remove caps from new evaporator.
  6. Locate evaporator in lower casing.
  7. Insert temperature sensor probe 30 mm into vanes at centre of evaporator.
  8. Fit upper casing and secure with clips and screws.
  9. Insert air filter into casing.
  10. Fit air filter cover.
