Condenser cooling fan

Refit

1. Position compressor and manoeuvre onto mounting bracket.
2. Fit 2 upper through bolts and nuts securing compressor to mounting bracket.
3. Fit 2 lower through bolts and nuts securing compressor to mounting bracket.
4. Tighten compressor mounting bolts to 45 Nm.
5. Clean compressor and pipe connections.
6. Remove caps from compressor and pipe connections.
7. Lubricate 2 new ’O’ rings with refrigerant oil and fit to compressor.
8. Position air conditioning pipe union to compressor, fit securing bolt and tighten to 45 Nm.
9. Connect multiplug to compressor clutch.
10. Fit front beam. See FRONT SUSPENSION, Repairs.
11. Fit alternator. See ELECTRICAL, Repairs.
12. Replace receiver/dryer. See this section.
13. Remove stand(s) and lower vehicle.
14. Connect battery earth lead.
15. Recharge air conditioning system. See Adjustments.

CONDENSER COOLING FAN

Service repair no - 82.15.01

Remove

1. Remove front bumper. See BODY, Exterior fittings.

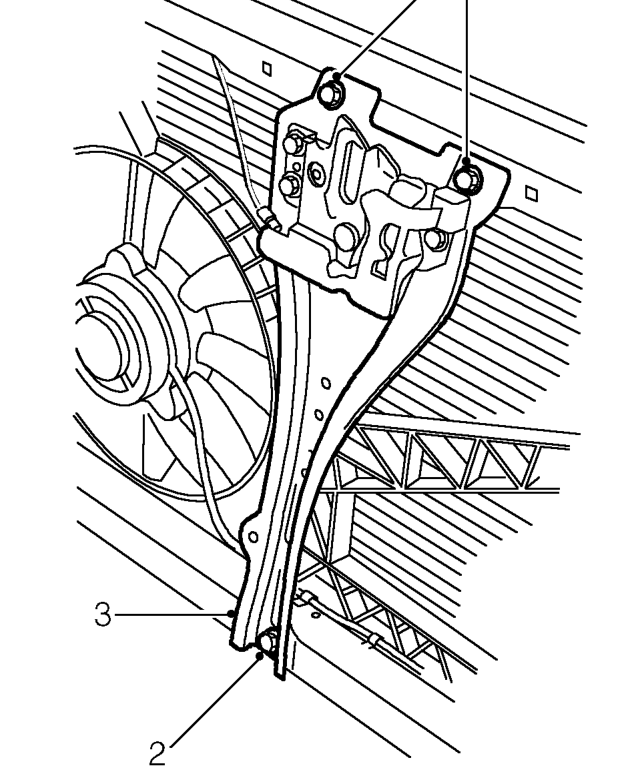

2. Remove 3 bolts securing support stay to bonnet platform and body.
3. Position bonnet platform support stay aside.
