Condenser cooling fan (page 3 of 3)

Do not carry out further dismantling if component is removed for access only.

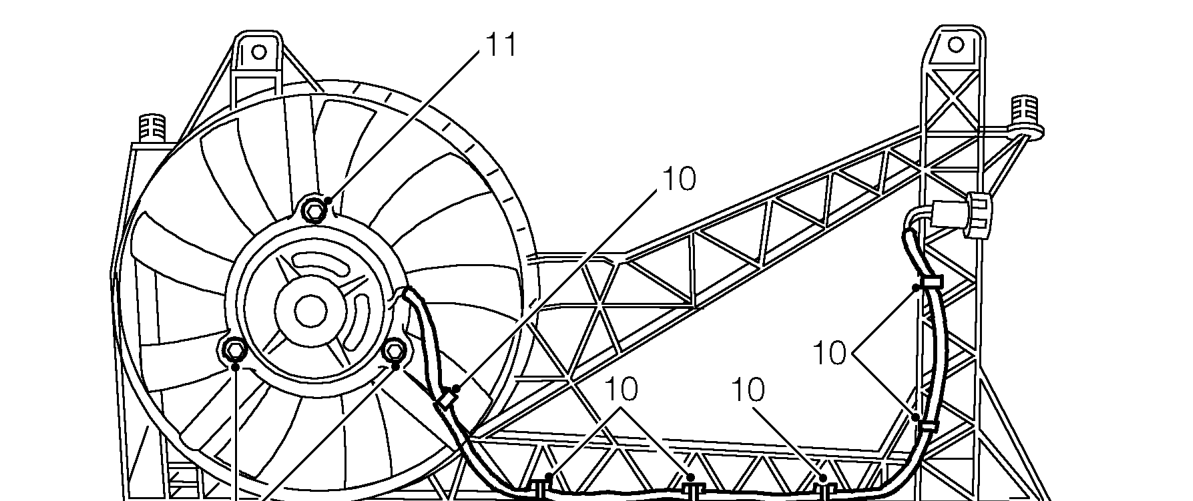

10. Release cooling fan harness from 6 clips on housing.
11. Remove 3 nuts securing cooling fan to housing.
12. Remove cooling fan.
13. Fit cooling fan to housing, fit nuts and tighten to 9 Nm.
14. Secure cooling fan harness to clips on housing.

Refit

1. Position cooling fan housing and locate lower mountings in body.
2. Fit condenser to cooling fan housing.
3. Fit 2 bolts securing condenser to cooling fan housing and tighten to 9 Nm.
4. Fit 2 mounting brackets to cooling fan housing.
5. Align mounting brackets to body and tighten bolts to 9 Nm.
6. Position support stay to bonnet platform and body, fit bolts and tighten to 9 Nm.
7. Fit front bumper. See BODY, Exterior fittings.
