Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement22 · Air conditioning
22 · Heating & A/C

Condenser cooling fan (page 2 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Air conditioningCondenser cooling fan · page 2 of 3

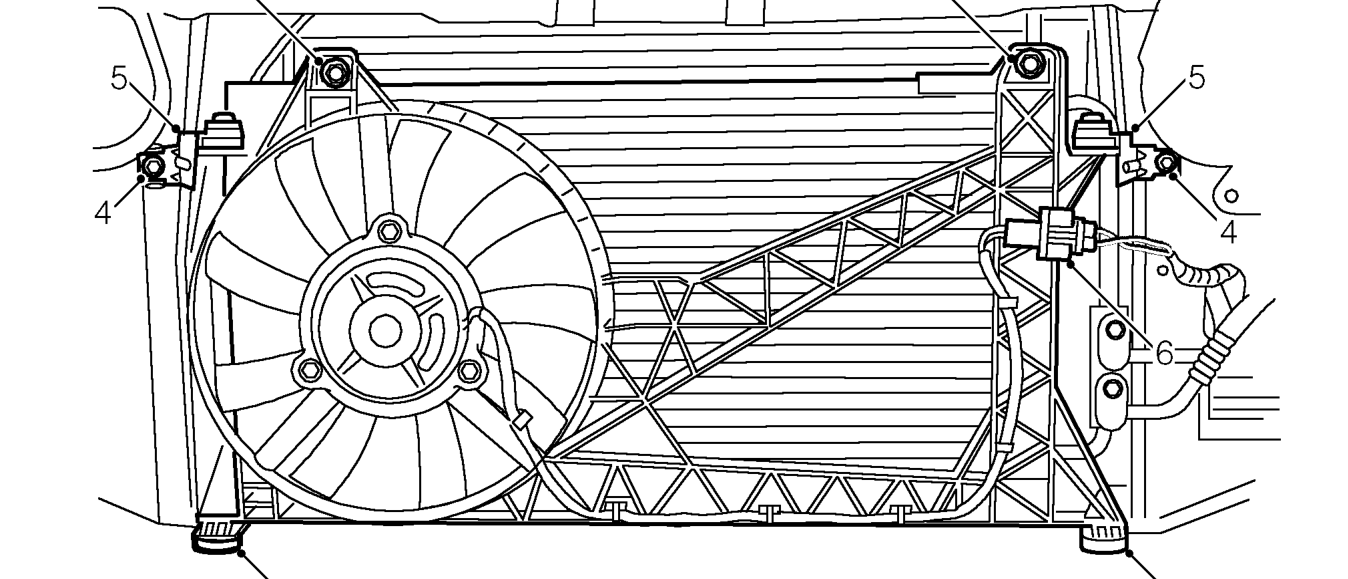

Diagram
  1. Remove 2 bolts securing cooling fan housing mounting brackets to body.
  2. Remove 2 mounting brackets.
  3. Disconnect cooling fan multiplug from harness.
  4. Remove 2 bolts securing cooling fan housing to condenser.
  5. Release condenser from cooling fan housing.
  6. Release lower mountings from body and remove cooling fan housing.
