Air conditioningAir conditioning switch · page 2 of 4
Diagram

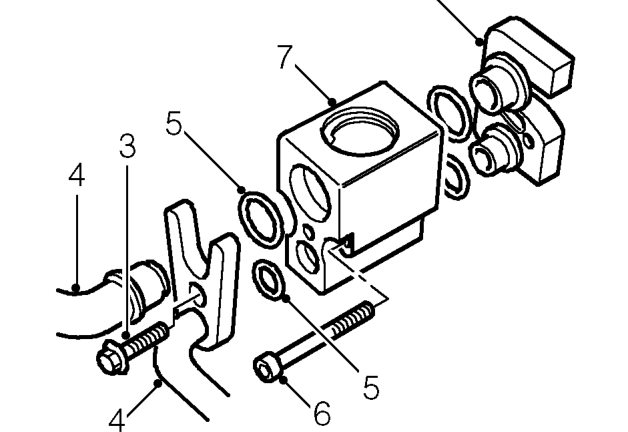

  1. Remove bolt securing air conditioning pipes to thermostatic expansion valve.
  2. Release pipes from valve.
  3. Remove and discard 2 ’O’ rings from air conditioning pipes.
  4. Remove 2 Allen screws securing thermostatic expansion valve to evaporator pipes.
  5. Remove valve.
  6. Remove expansion valve clamping bracket from evaporator pipes.

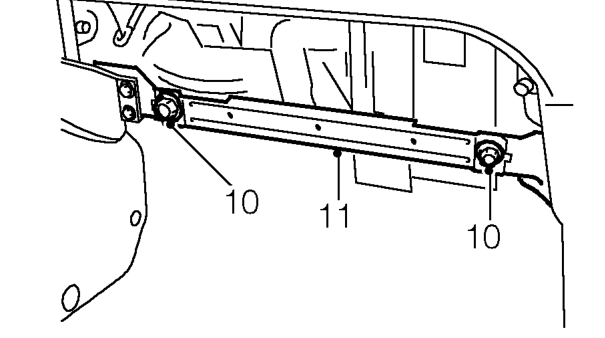

  7. Remove glove box. See BODY, Interior trim components.
Remove glove box. See BODY, Interior trim components.
  1. Remove 2 bolts securing rail to fascia.

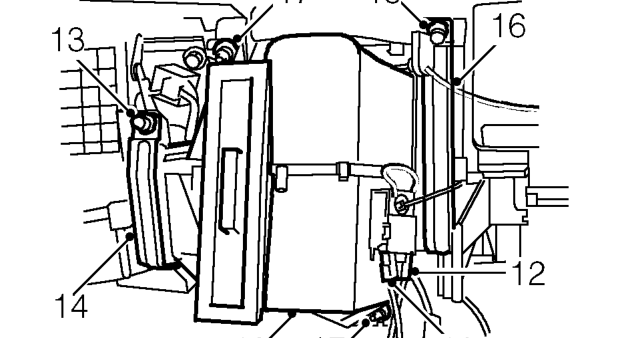

  2. Remove rail.
Remove rail.
  1. Disconnect 2 Lucars from evaporator thermostat.
  2. Remove screw securing evaporator to blower assembly strap.
  3. Remove strap.
  4. Remove screw securing evaporator to heater assembly strap.
  5. Remove strap.
  6. Remove 2 nuts securing evaporator to bulkhead.
  7. Remove evaporator.

Do not carry out further dismantling if component is removed for access only.

Do not carry out further dismantling if component is removed for access only.

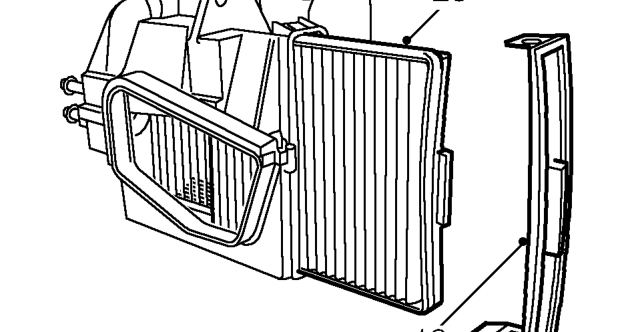

  1. Remove air filter cover.
  2. Remove air filter from evaporator.
